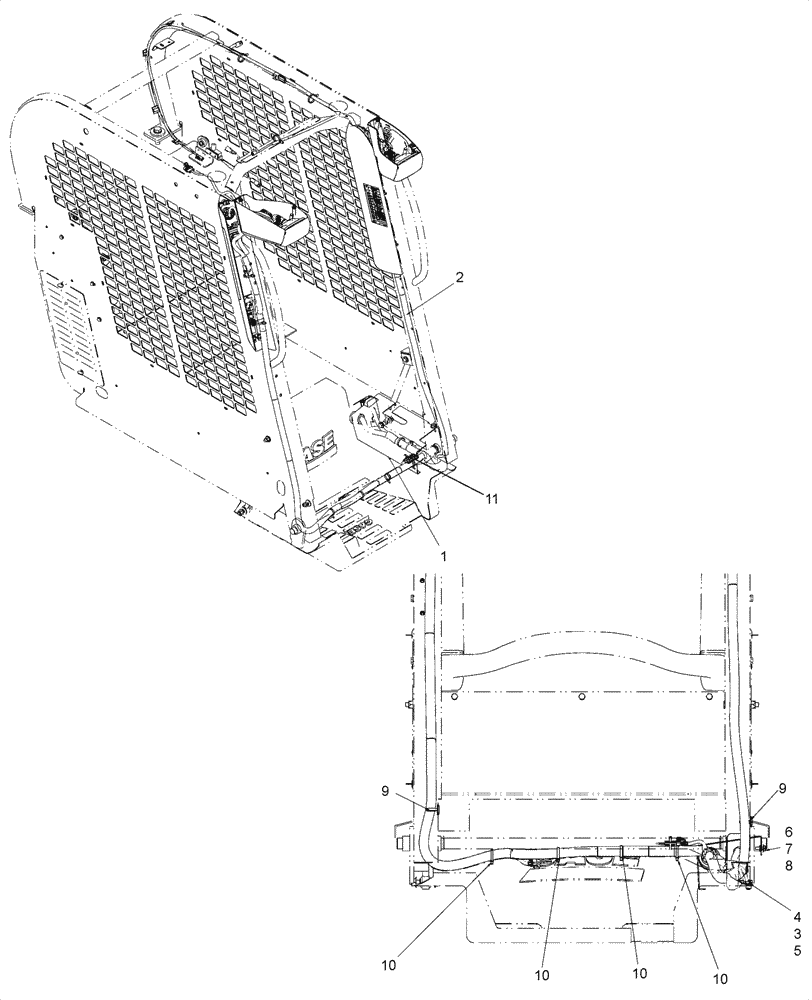

Запчасти Case IH 440 (04-06A) - ELECTRIC - CAB (04) - ELECTRICAL SYSTEMS

1

87035749

COVER

Harness Cover Option; If Used

1шт.

1

84124103

COVER

Harness Cover Option, Tan

1шт.

2

87715726

HARNESS

Harness, Cab; Incl 6A; Replaces 87668728; If Used

1шт.

2

87745734

HARNESS

Cab Harness

1шт.

3

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

1шт.

4

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

5

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

Square M8 x 1.25

1шт.

6

281032

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8, Full Thd

2шт.

7

86521425

SPRING NUT,Tinn, U, 1/4"-20

2шт.

8

87016587

WASHER,0.27" ID x 0.62" OD x 0.05" Thk

2шт.

9

378884A2

STRAP,254mm L

Strap Through Panel Tie

2шт.

10

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

4шт.

11

87716447

ELEC CONNECTOR

Jumper Wire Connector

1шт.
