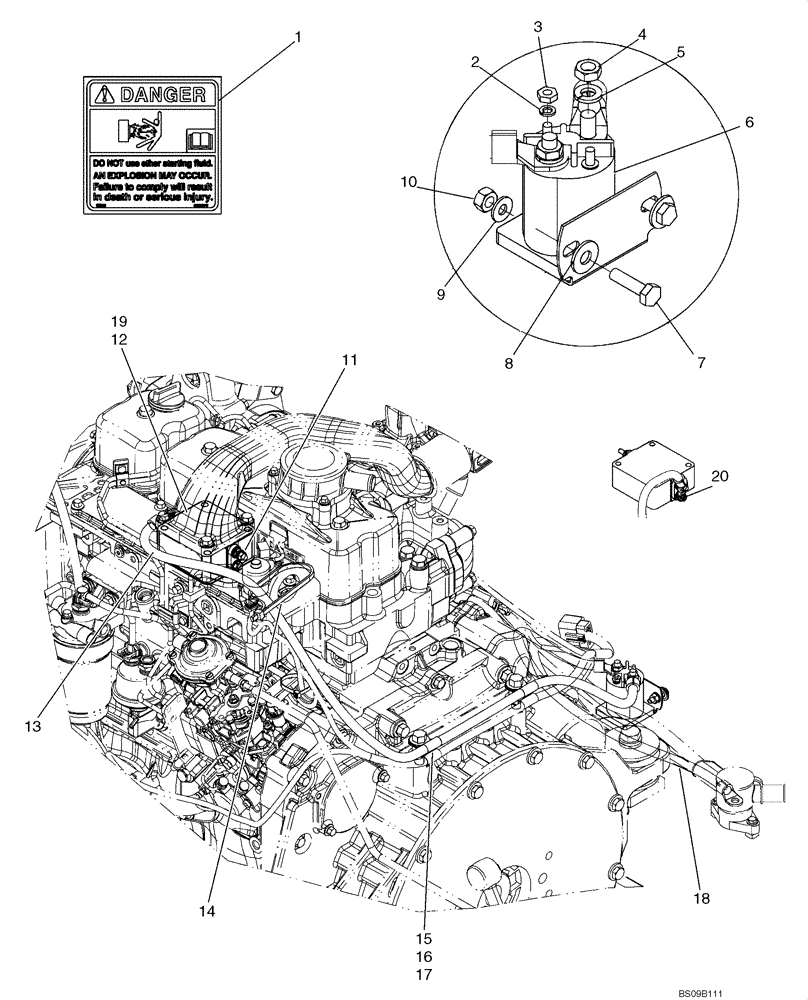

Запчасти Case IH 440 (04-04A) - GRID HEATER (04) - ELECTRICAL SYSTEMS

1

629086

DANGER DECAL

Decal, Danger; If Used

1шт.

2

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

1шт.

3

87825

NUT,#10-32

1шт.

4

9626568

JAM NUT,Jam, 5/16"-18, G2

2шт.

5

80681

LOCK WASHER,5/16"

2шт.

6

87406968

SOLENOID SWITCH

1шт.

7

88146

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

8

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

2-6шт.

9

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

10

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

11

86511444

FLANGE NUT,Hex, M6 x 1

If Used

1-2шт.

12

82017872

HEATER

Grid Heater; If Used

1шт.

13

87727258

NEG BATTERY CABLE

1224mm (48 3/16 in.) Length

1шт.

14

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP If Used

1шт.

15

9670288

BOLT,Hex, M12 x 35mm, Cl 8.8

If Used

2шт.

16

87305403

SPACER,13.51mm ID x 19.05mm OD x 17.5mm Thk

If Used

2шт.

17

87301588

CLAMP,11.1mm, Coat, 13.5mm Bolt Hole, P Type

Closed 11.1mm Insul 1/2 Bolt; If Used

2шт.

17

86632595

CLAMP,12.7mm, Coat, 13.5mm Bolt Hole, P Type

2шт.

18

87047862

CABLE,595mm L

595mm (23 7/16 in.) Length

1шт.

19

86014151

GASKET,93mm L x 98mm L

Gasket, Air Intake To Grid Heater; If Used

2шт.

20

87493115

Terminal Jumper Bar

BAR

1шт.
