Запчасти Case IH 440 (04-01) - STARTER AND ALTERNATOR (04) - ELECTRICAL SYSTEMS

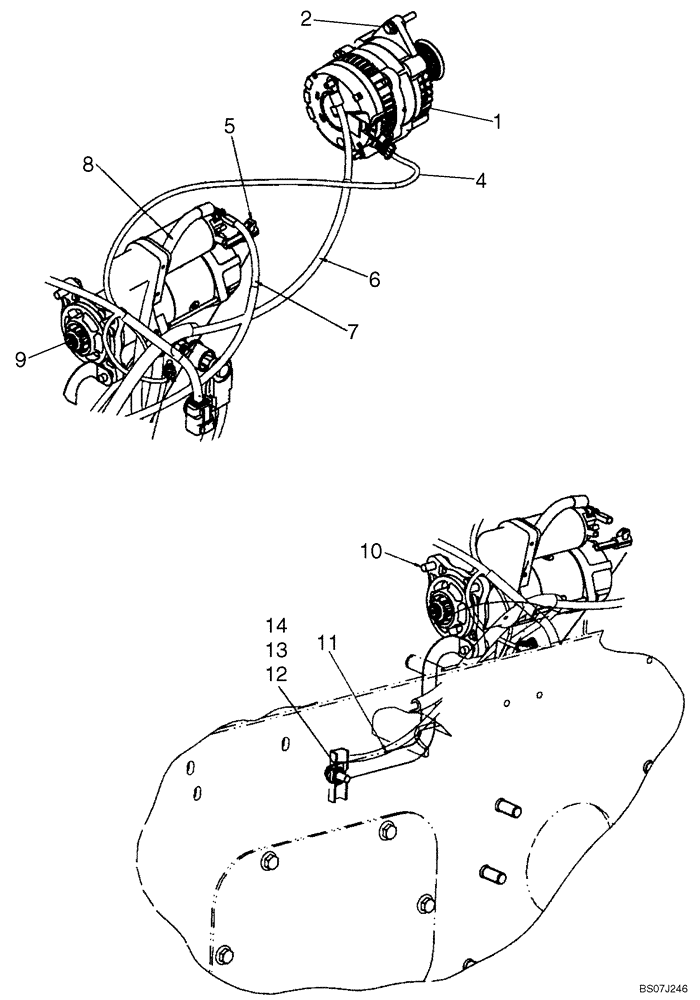

Схема запчастей Case IH 440 - (04-01) - STARTER AND ALTERNATOR (04) - ELECTRICAL SYSTEMS
9
7
6
5
1
2
8
11
4
10
14
13
12

Артикул

Название

Примечание

Количество

1

87042118

ALTERNATOR

Delco

1шт.

1

87038475R

REMAN-ALTERNATOR

Reman for New PN 87042118

1шт.

1

87038475C

CORE-ALTERNATOR

Return Number

1шт.

2

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

3

386045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

1шт.

4

87623352

HARNESS

Harness; NEF Engine

1шт.

5

87053083

HARNESS

Starter Jumper

1шт.

6

87742136

CABLE,825mm L

Replaces 87620458 And 87713728; Harness, Starter To Alternator/Start Relay

1шт.

7

87652238

CABLE

547mm (21.54in); Starter To Power Distribution Block; If Used

1шт.

7

87741596

CABLE,614mm L

614mm (24.17in); Replaces 87707133, 613.82mm (24.17in); Starter To Power Dist Block

1шт.

8

87052670

CABLE ASSY.

Battery Cable; Positive; See Figure 04-03

1шт.

9

87366159

STARTING MOTOR

Delco Remy Starter

1шт.

9

87366159R

REMAN-STARTER

Remanufactured Starter

1шт.

9

87366159C

CORE-STARTER

Return Number

1шт.

9

87040161

STARTER MOTOR,12V, 2.7kW

Denso Starter; Incl Jumper Harness 87040162; No Longer Used, Order 87638510

1шт.

9

87040161R

REMAN-STARTER,12V, 2.7kW

Denso Starter, Remanufactured Two Bolt Mounting Holes

1шт.

9

87040161C

CORE-STARTER,12V, 2.7kW

Denso Starter, Core

1шт.

9

87638510

STARTER MOTOR,12V, 2.7kW

Denso Starter, 3.0KW PA90S Three Bolt Mounting Holes

1шт.

87638510R

REMAN-STARTER,12V, 2.7kW

440 Series 3, ASN N8M474469, (1/08)

1шт.

87638510C

Return Number

CORE-STARTER,12V, 2.7kW

1шт.

10

9804262

BOLT,M10 x 39.2mm, Cl 8.8

If Used

3шт.

10

9804263

BOLT,M10 x 49.2mm, Cl 8.8

3шт.

11

87648689

GROUND STRAP

Starter

1шт.

12

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

If Used

1шт.

13

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

14

309096A1

SQUARE NUT,Square, M10 x 1.5, LH Thd, Cl 5A

Square M10-1.5 W/Retaining Cls 8 Znd

1шт.

Выбрано товаров: 26
