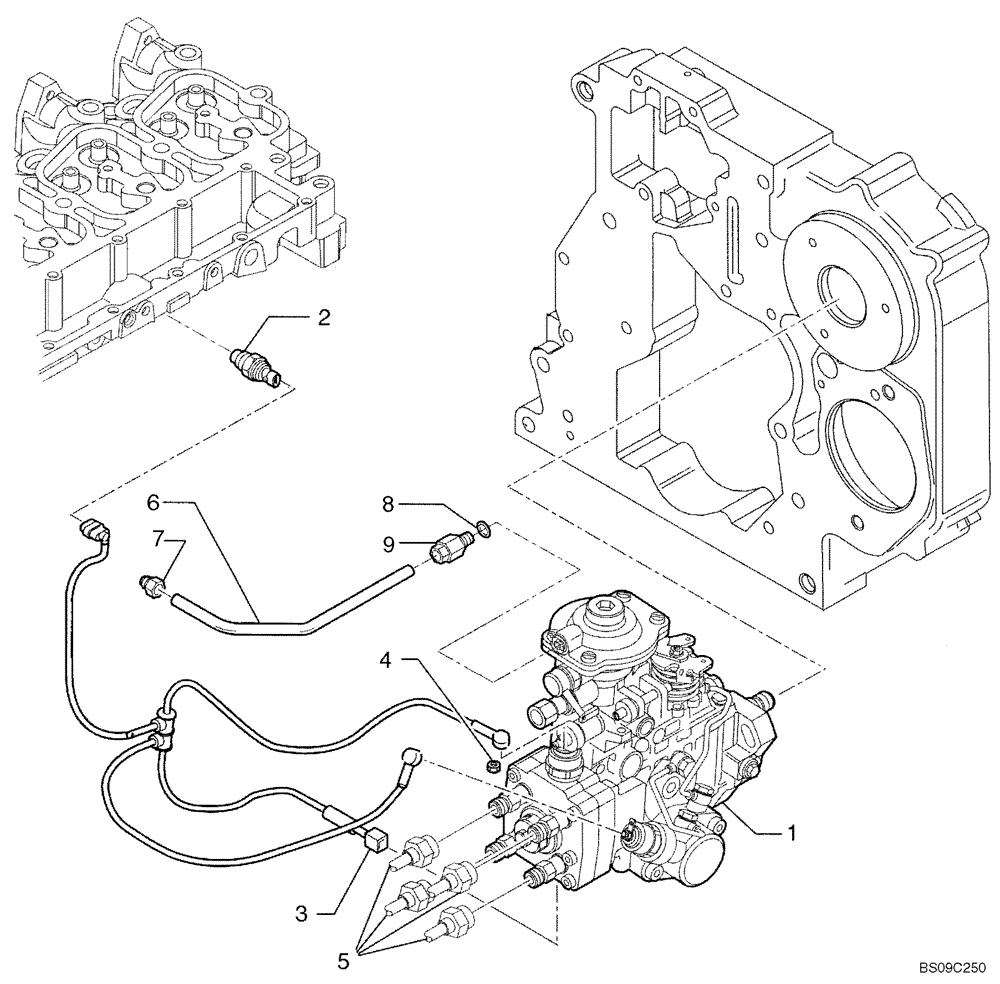

Запчасти Case IH 440 (03-04) - FUEL INJECTION PUMP (03) - FUEL SYSTEM

1

2856334

FUEL INJECTION PUMP

Incl 2852741 Shut off Solenoid

1шт.

ASN N7M483467, Both Use Eng. P/N 84149899 Tier 3, N.A. Only

1шт.

1

2856334R

440 SSL Series 3, ASN N8M474469, 440CT Compact Track Loader Series 3

REMAN-INJECTION PUMP

1шт.

1

2856334C

Return Number

CORE-INJECTION PUMP

1шт.

2852741

SOLENOID

Fuel Shut Off

1шт.

2

2852087

SENSOR

Water Temperature

1шт.

3

2852088

WIRE HARNESS

1шт.

4

2852089

NUT,M5

2шт.

5

REF

INSTRUCTION

TUBE; See Figure 03-07 for Tube Kit

1шт.

6

2852059

TUBE

1шт.

7

4896770

TUBE NUT,M10 x 1

1шт.

8

2852057

SEALING WASHER,M8 x 12 x 1 Thk

SEAL WASHER

1шт.

9

4893518

TUBE,M8 x 1 x 29.5 L

1шт.
