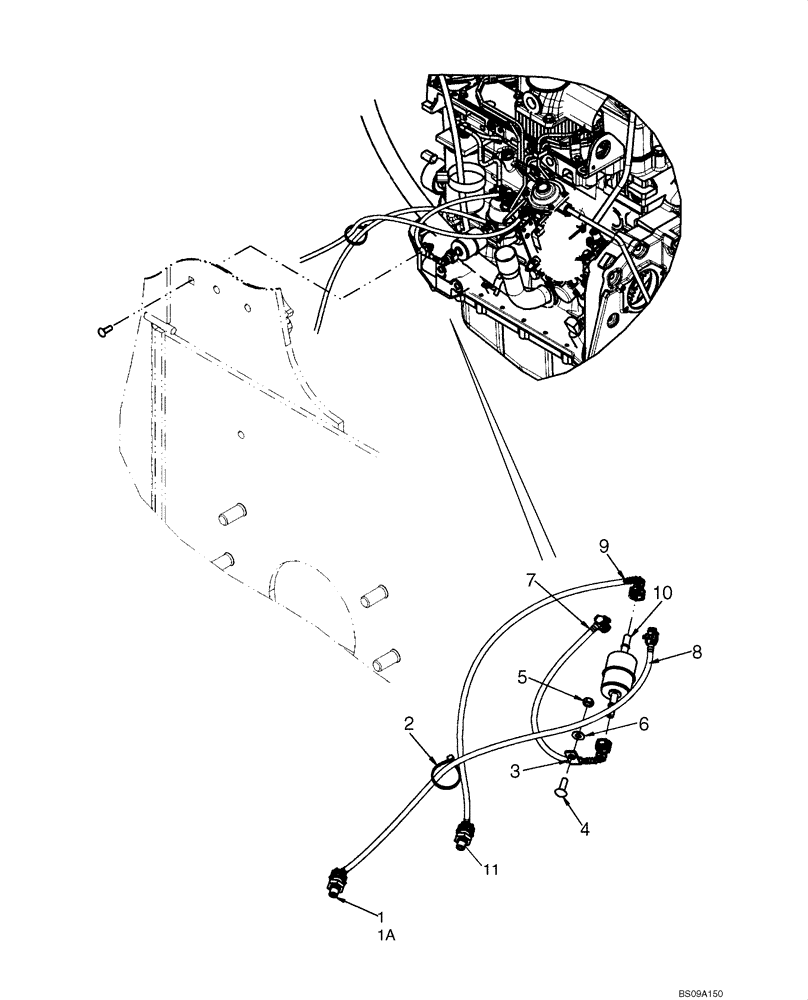

Запчасти Case IH 440 (03-01) - FUEL LINES AND FUEL FILTER (03) - FUEL SYSTEM

1

87431323

ADAPTER

Fuel Line Adapter; If Used

1шт.

1a

86601756

HYD CONNECTOR

If Used

1шт.

2

529070

CABLE TIE,368.3mm L

CABLE STRAP

1шт.

3

853764

CLAMP,7.9mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

4

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

1шт.

5

43362

NUT,M8 x 1.25, Cl 10

1шт.

6

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

7

87584554

FUEL HOSE,335.00 mm, SAE 2044

1шт.

8

87598810

HOSE

Return Fuel Line, 805 mm (31.7 in)

1шт.

9

87584639

FUEL HOSE,650.00 mm, SAE 2044

1шт.

10

87548612

FUEL FILTER

Inline

1шт.

11

87436610

ADAPTER

If Used

1шт.
