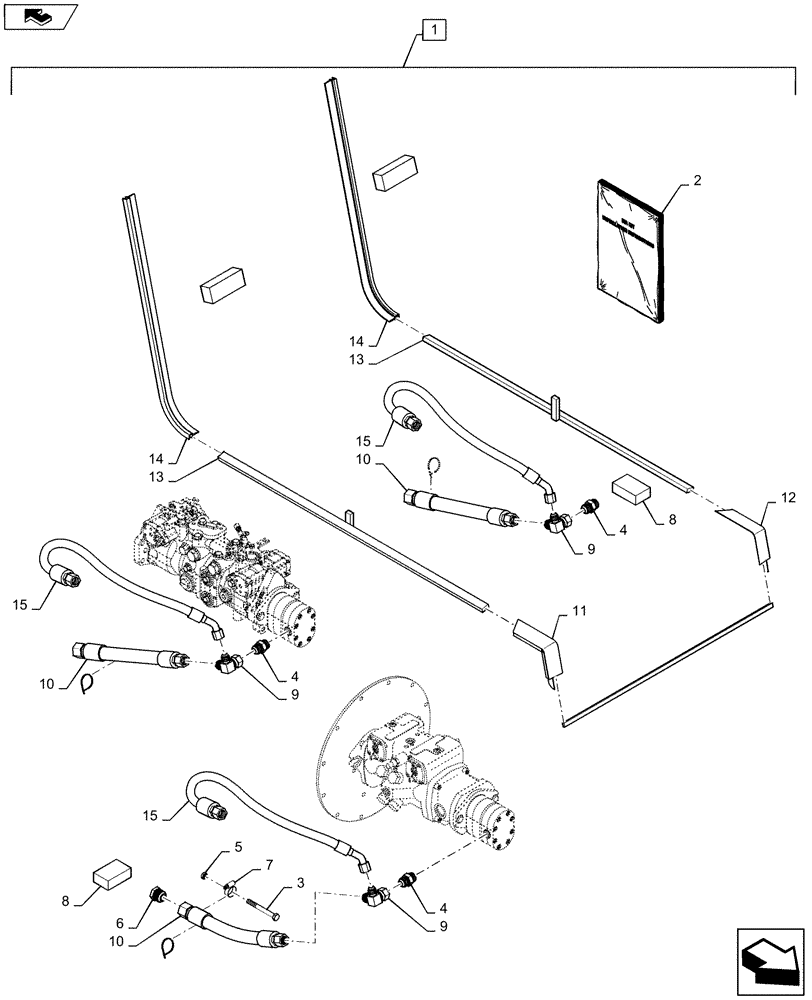

Запчасти Case IH 440 (88.088.02) - DIA KIT, NOISE REDUCTION, NA (88) - ACCESSORIES

1

87489711

SERVICE KIT

NA Noise Reduction, Incl 2 - 15

1шт.

2

87489712

Install, Noise Reduction

INSTRUCTION

1шт.

3

43158

BOLT,Hex, M12 x 80mm, Cl 8.8

1шт.

4

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

1шт.

5

323238

THIN NUT,Hex, M12, 1.75mm Pitch, Cl 05

1шт.

6

9790527

PLUG,1-5/16" - 12 JIC

1шт.

7

87039085

HOSE CLAMP,32mm - 54mm

Wormgear Head

1шт.

8

87353205

PAD

Right Tower

1шт.

9

87441649

ADAPTER

Swivel Tee Side Outlet Reducer

1шт.

10

87462103

HOSE ASSY.

1шт.

11

87473791

RUBBER SEAL,241.5mm L

Pivot RH

1шт.

12

87473792

RUBBER SEAL,241.5mm L

Pivot LH

1шт.

13

87636733

I, Cab Noise Reduction

SERVICE KIT

1шт.

14

87719792

SEALING STRIP,39.3mm W x 783.3mm L x 2.2mm Thk

Rear Cab

2шт.

15

87720912

HOSE,15.88mm ID x 950mm L

Valve Supply

1шт.
