(09-69) - DECALS

Запчасти Case IH 440 (09-69) - DECALS (09) - CHASSIS

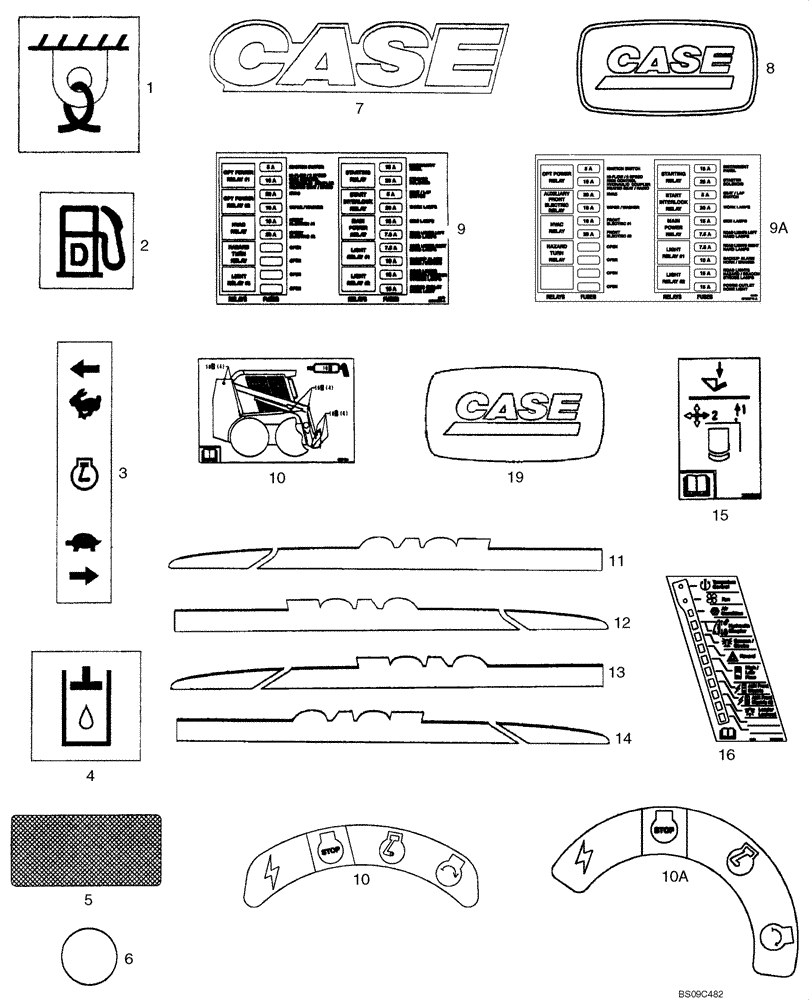

Схема запчастей Case IH 440 - (09-69) - DECALS (09) - CHASSIS
7
2
3
13
15
16
11
4
1
8
14
6
10
19
9
5
12
10a
10
9a
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

139879A1

DECAL

Decal, Diesel Fuel

1шт.

2

139728A1

DECAL

Decal, Tie Down

1шт.

3

251752A1

DECAL

Decal, Throttle

1шт.

4

251753A1

DECAL

Decal, Hydraulic Fluid

1шт.

5

294752A1

REFLECTOR,94mm L X 44mm W

Decal, Reflector, Red

1шт.

6

429630A2

CAP COVER,43mm OD

Decal, Lexan Cover

1шт.

7

87389371

DECAL

Decal, CASE Logo

1шт.

8

87429186

EMBLEM

Decal, CASE Engine

1шт.

9

87734526

DECAL

Decal, Fuse Box Layout; If Used

1шт.

9a

87489719

DECAL

Decal, Fuse Box Layout

1шт.

10

373248A2

DECAL

Decal, Lubrication Points

1шт.

11

398798A1

DECAL

Decal, Case Stripe LH Only; Used On 410, 420/420CT; Used with ref 7

1шт.

12

398796A1

DECAL

Decal, Case Stripe RH Only; Used On 410, 420/420CT; Used with ref 7

1шт.

13

411516A1

DECAL

Decal, Case Stripe LH Only; Used On 430, 440/440CT; Used with ref 7

1шт.

14

411515A1

DECAL

Decal, Case Stripe RH Only; Used On 430, 440/440CT; Used with ref 7

1шт.

15

398728A2

DECAL

Decal, Lift Arm Bypass; Used On 420CT, 440CT

1шт.

16

87733935

DECAL

Decal, Option Panel, LH Console

1шт.

17

87735655

DECAL

Decal, Key Switch; If Used

1шт.

17a

87629079

DECAL

Decal, Key Switch

1шт.

18

284152A1

DECAL

Decal, Wedge Engamnt Ind

1шт.

19

87415931

DECAL

Decal, Fuel And Oil Filter

1шт.
