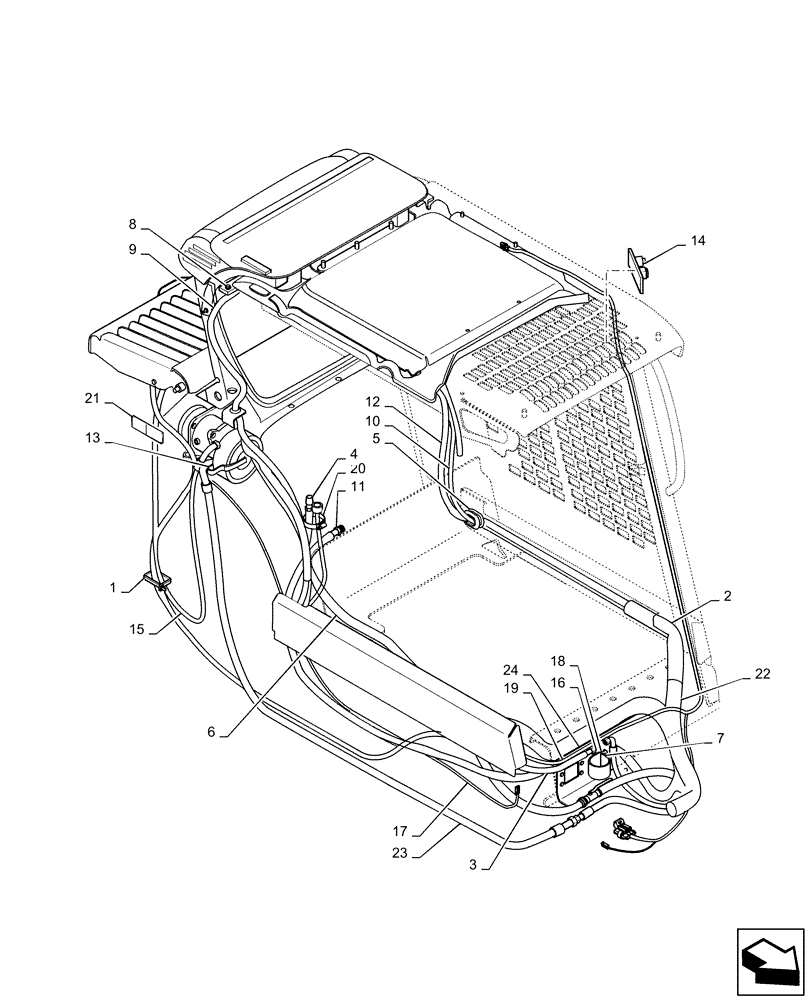

Запчасти Case IH 440 (09-59[A]) - HEATER, AIR CONDITIONER (09) - CHASSIS

1

L18331

CABLE TIE,375.9mm L, Nylon, Black

Hose

2шт.

2

87729516

FOAM INSULATION

Crushable

1шт.

3

87717220

HOSE

AC Liquid

1шт.

4

642560

FITTING,5/8" Hose x 3/8" NPTF Beaded

1шт.

5

87439844

GUARD

Rops Trim

3шт.

6

87691475

HEATER HOSE,15.75" mm ID, 1975.00 mm, SAE 20R3, SAE J20

2шт.

7

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

5шт.

8

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

2шт.

9

87691473

A/C HOSE

AC Drain

1шт.

10

87691471

HOSE,7.94mm ID x 3450mm L

AC Liquid

1шт.

11

86010532

FITTING,5/8" Hose X 1/2" NPTF Beaded

1шт.

12

87691470

HOSE,12.7mm ID x 3500mm L

AC Suction

1шт.

13

87647034

BRACKET

Compressor

1шт.

14

87555249

SWITCH

AC

1шт.

15

87452009

A/C HOSE

AC Discharge

1шт.

16

86619800

FLANGE NUT,M6 x 1, Cl 8

4шт.

17

87445908

HARNESS

Compressor

1шт.

18

86625481

RECEIVER-DRYER

1шт.

19

86625515

PRESSURE SWITCH

AC

1шт.

20

87443511

CLAMP,22mm - 26mm, CTB-24, Style C

2шт.

21

86639409

DECAL

AC Specs

1шт.

22

87441006

TUBE,4.6mm ID x 1350mm L

AC Hoses

1шт.

23

87436118

A/C HOSE

Suction

1шт.

24

87437501

BRACKET

Reciever Dryer

1шт.
