Артикул
Название
Примечание
Количество

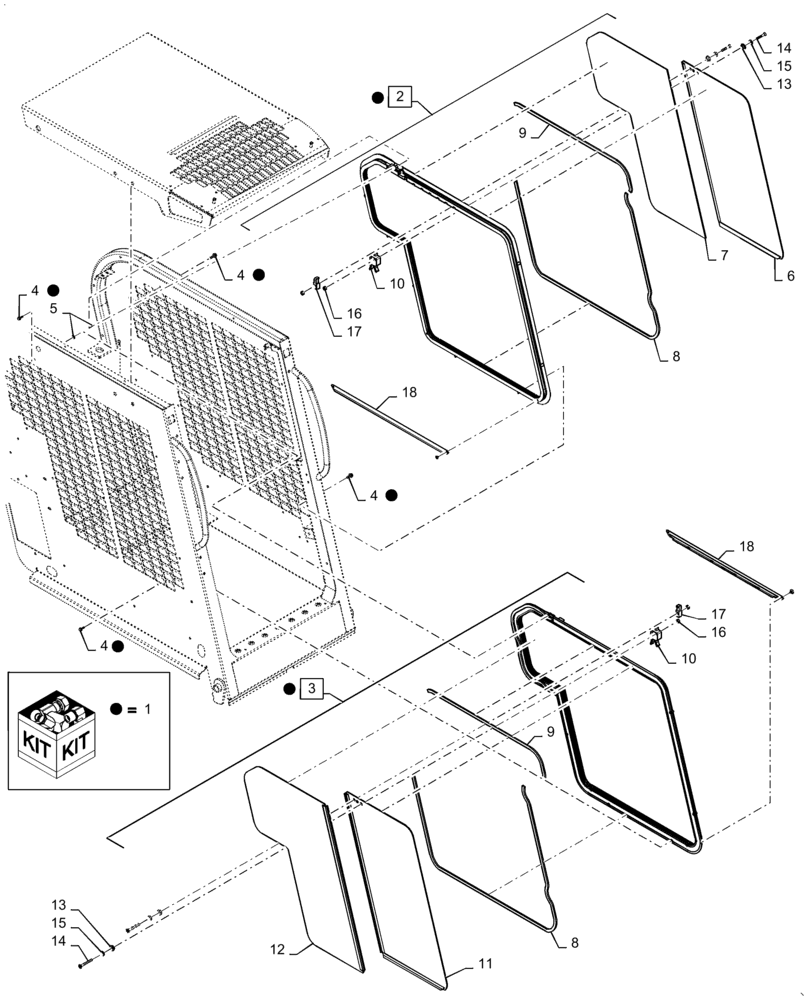

1
87638358
SERVICE KIT
Side Windows, Includes: Ref. 1 - 4 & Installation Instructions
1шт.
Refer to Installation Instructions for Correct Assembly Procedure.
1шт.
2
87494763
WINDOW
LH, Includes: Ref. 6 - 10
1шт.
3
87494772
WINDOW
RH, Includes: Ref. 8 -12
1шт.
4
9804256
BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8
16шт.
5
86624184
WASHER,9mm ID x 16mm OD x 1.6mm Thk
2шт.
6
87498561
WINDOW
LH Front
1шт.
7
87498562
WINDOW
LH Rear
1шт.
8
84129656
SEAL,3532.5mm L
2шт.
9
84129657
SEAL, GLASS
2шт.
10
87620986
LATCH
Window, Mounting
2шт.
11
87498563
WINDOW
RH Front
1шт.
12
87498564
WINDOW
RH Rear
1шт.
13
87653402
BUSHING
Latch Mounting
2шт.
14
87670692
SCREW,M8 x 1.25mm
Latch Mounting
2шт.
15
87653400
WASHER
Latch Mounting
2шт.
16
87670693
NUT
Latch Mounting
2шт.
17
47752892
GUIDE
Glass Retainer
4шт.
18
47752899
Window
GUIDE
2шт.
Выбрано товаров: 19
