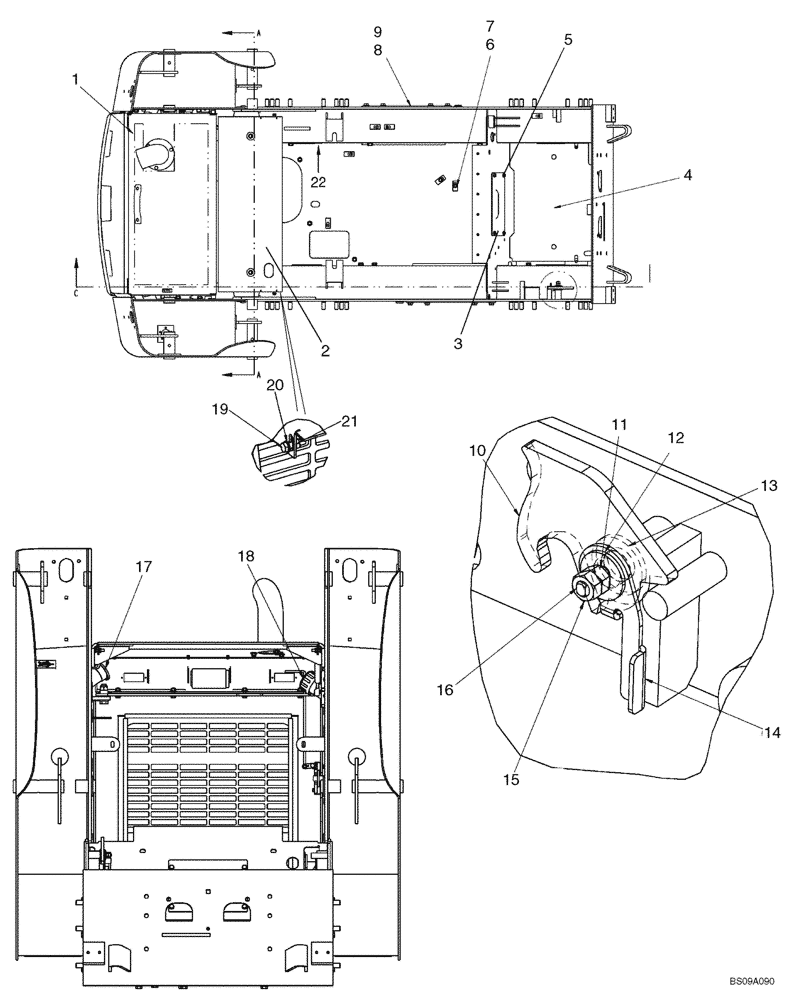

1
REF
INSTRUCTION
Rear Hood; See Fig. 09-24
1шт.
2
87661301
INSULATING PANEL
Panel, Heat Shield Extension
1шт.
2
87743317
HEAT SHIELD
Panel, Heat Shield Extension, Gray
1шт.
3
87430679
PLATE
Cover Plate
1шт.
4
87705430
FLOOR MAT
Floor Plate - Tan
1шт.
5
86545825
SELF-TAP SCREW,Hex Wash Hd, 5/16" x 5/8"
4шт.
6
86508569
BOLT,Hex, M6 x 70mm, Cl 8.8
2шт.
7
87022737
SPACER,11.1mm ID x 15.9mm OD x 25mm L
2шт.
8
87030508
BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9
12шт.
9
87411208
COVER PLATE
2шт.
10
390516A3
LATCH
ROPS Latch Plate
1шт.
11
278332A1
SPRING WASHER
1шт.
12
294967A1
WASHER
1шт.
13
87381
WASHER,0.81" ID x 1.47" OD x 0.13" Thk
1шт.
14
294911A2
HOOK
Latch Return Plate
1шт.
15
86500689
NUT,M10 x 1.5, Cl 10
2шт.
16
294943A1
STUD
Latch Mounting Stud
1шт.
17
H436887
CAP
Fuel Cap, Non Locking
1шт.
17
108925A1
FILLER CAP
Fuel Cap, Locking; Incl 2 Keys
1шт.
18
257448A1
CAP
Hydraulic Fill Cap
1шт.
19
43128
BOLT,M8 x 1.25 x 30mm, Cl 8.8
2шт.
20
140016
WASHER,M8 x 16mm OD x 1.6mm Thk
4шт.
21
43362
NUT,M8 x 1.25, Cl 10
2шт.
22
86991034
PLUG
Axle Access
4шт.
