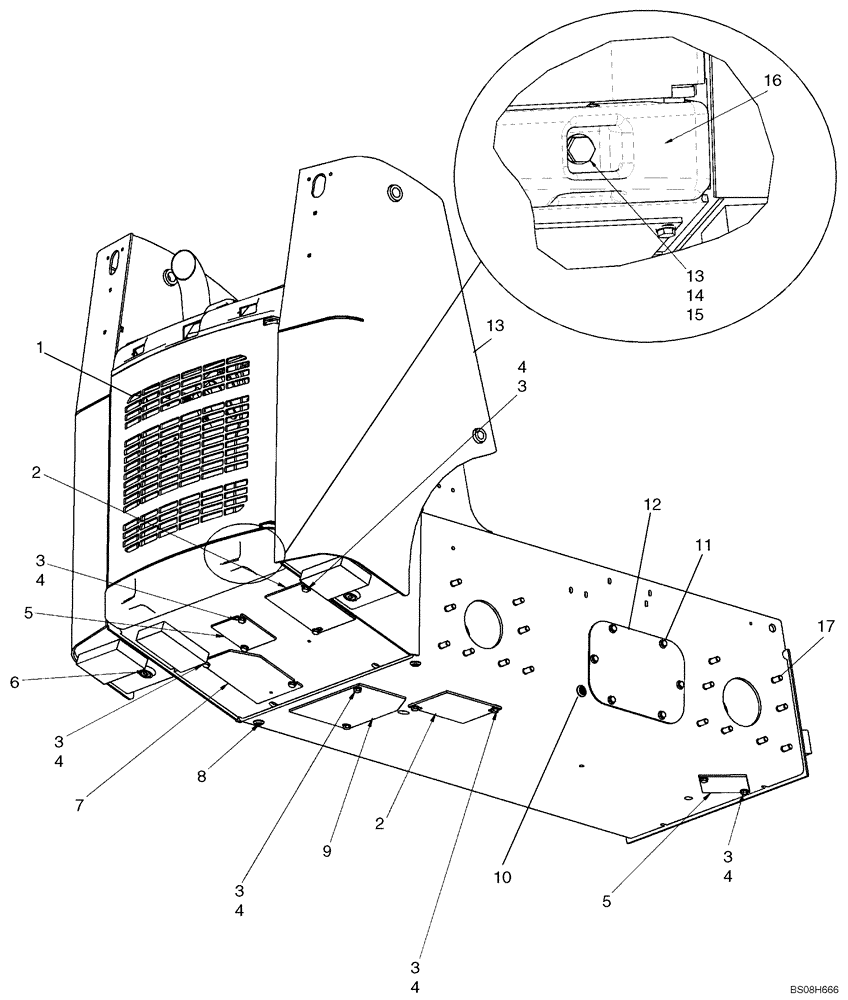

Запчасти Case IH 440 (09-16) - CHASSIS (440) (09) - CHASSIS

1

REF

INSTRUCTION

Rear Door; See Fig. 09-26

1шт.

1

REF

INSTRUCTION

Rear Door, Louvered, Europe; See Fig 09-27

1шт.

2

87458642

PLATE

Plumbing Access Plate

2шт.

3

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

16шт.

4

9824642

BOLT,M12 x 1.75 x 42.68mm, Cl 10.9

12шт.

5

H436914

LARGE PLATE

PLATE, LARGE

2шт.

6

87432221

PLUG

Magnetic Plug

2шт.

7

87666074

COVER PLATE

Plumbing Access Plate

1шт.

8

236622

PLUG,3/8" - 18 NPT

3/8 - 18 NPTF

2шт.

9

87648094

PLATE

Oil Drain Cover

1шт.

10

647429

DRAIN PLUG,Sq Soc HD, 1/2" - 14, NPTF

Plug, 1/2 - 14 NPTF

2шт.

11

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

12шт.

12

87411208

COVER PLATE

2шт.

13

87617091

SERVICE KIT

Frame; Incl Ref 6, 8, 10 And Fig 09-16 Ref 17 (Non Locking Cap) 18, Fuel Sender And Gasket

1шт.

14

86625260

WASHER,21.8mm ID x 37.5mm OD x 4mm Thk

2шт.

15

86536985

NUT,M20 x 2.5, Cl 10

2шт.

16

87626717

COUNTERWEIGHT

Bumper, Counterweight

1шт.

17

254799A1

STUD

M16x45; Studs For Axle Mounting

32шт.
