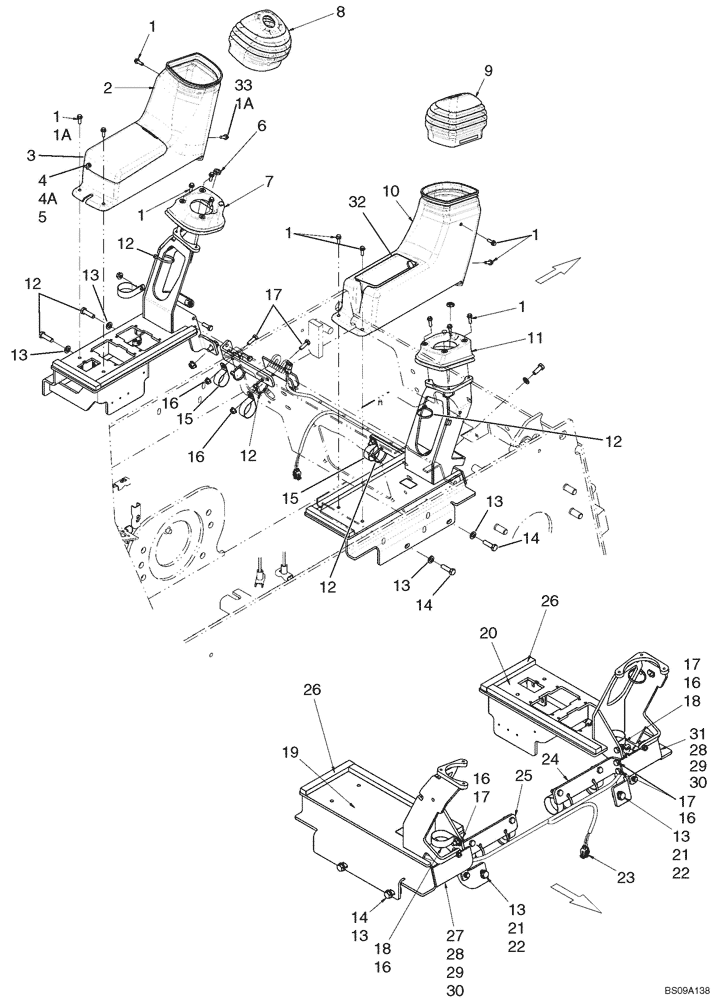

Запчасти Case IH 440 (09-13) - CONTROLLER - MOUNTING (PILOT CONTROL) (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
87556251
SCREW,Hex, 1/4" - 20 x 3/4"
Screw, 1/4-20 X 3/4
8-14шт.
1a
86511443
BOLT,Hex Serr, 1/4" - 20 x 1", 5SPL, Full Thd
If Used
6шт.
2
87665545
CONSOLE
Console, LH
1шт.
3
87647723
COVER
Fuse Cover
1шт.
4
87568437
WING NUT
Knob, Latch; If Used
1шт.
4
273890
THUMB SCREW,#10 - 32 x 3/4"
If Used
1шт.
4a
86625144
SNAP RING,#18, Ext
If Used
1шт.
5
236535A1
CLIP,ELECTRICAL
Clip, Latch; If Used
1шт.
5
87301324
NUT,Spring, M5 x 0.8
If Used
1шт.
6
323238
THIN NUT,Hex, M12, 1.75mm Pitch, Cl 05
2шт.
7
87739659
FOAM INSULATION
Seal, LH; Replaces 87646402
1шт.
8
87679718
BOOT
LH
1шт.
9
87679715
BOOT
RH
1шт.
10
87665543
CONSOLE
Console, RH
1шт.
11
87739658
FOAM INSULATION
Seal, RH; Replaces 87646401
1шт.
12
L11541
CABLE TIE,203.2mm L, Nylon
CABLE STRAP
6шт.
13
86624176
WASHER,11mm ID x 20mm OD x 2mm Thk
6шт.
14
9706704
BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8
4шт.
15
86637998
CLAMP,38.1mm, Coat, 10.3mm Bolt Hole, P Type
3шт.
16
86505868
SERRATED NUT,Hex, M8 x 1.25, Cl 8
10шт.
17
43127
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8
6шт.
18
603022
CLAMP,44.4mm, Coat, 10.3mm Bolt Hole, P Type
3шт.
19
87725332
BRACKET
Console, RH
1шт.
20
87725330
BRACKET
Console, LH
1шт.
22
43435
FLANGE NUT,Hex, M10 x 1.5
2шт.
23
87470920
HARNESS
Pilot Harness; Replaces 87568434
1шт.
24
87740449
BRACKET
Hose Support, LH
1шт.
25
87740450
BRACKET
Hose Support, RH
1шт.
26
291308
SEALING STRIP,0.75" W x 0.5" Thick
1067mm (42 in.) Required
1шт.
27
87730823
PLATE
Filler Plate
1шт.
29
9804276
FLANGE NUT,Hex, M6 x 1, Cl 8
If Used
2шт.
30
86588450
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
2шт.
31
87730824
PLATE
Filler Plate
1шт.
32
291809
SEALING STRIP
0.3 FT Required, Cut As Needed
1шт.
33
86624182
WASHER,6.6mm ID x 18mm OD x 1.6mm Thk
If Used
2шт.
Выбрано товаров: 37
