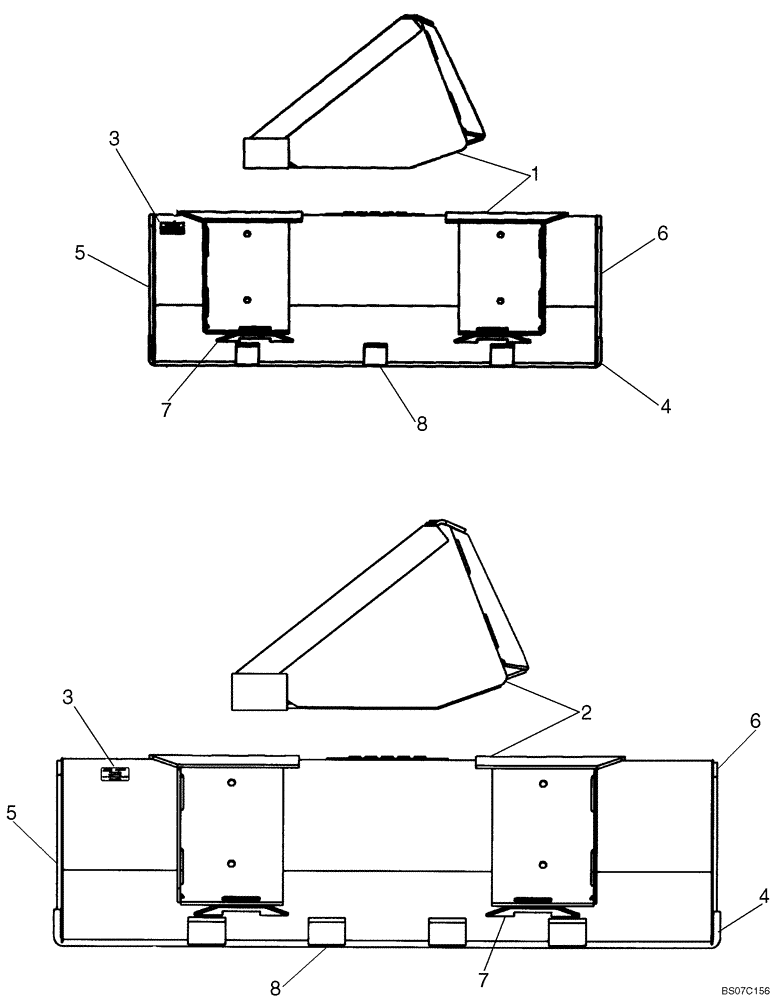

Запчасти Case IH 440 (09-07) - BUCKETS - LOADER (LOW PROFILE/ EXTENDED LOW PROFILE) (09) - CHASSIS

REF

INSTRUCTION

LOW PROFILE

1шт.

1

86618363

BUCKET

1676 mm (66 Inch); Order From Machinery Price List; Incl. 3 - 8

1шт.

3

NSS

NOT SOLD SEPARAT

Decal

1шт.

4

87015514

CUTTING EDGE

Weld On Blade

1шт.

5

87014503

CUTTING EDGE

Cutter Left Hand

1шт.

6

87014502

CUTTING EDGE

Cutter Right Hand

1шт.

7

87015460

PLATE

2шт.

8

9829786

BAR

Skid Bar

3шт.

1

86618364

BUCKET

1820 mm (72 Inch); Order From Machinery Price List; Incl. 3 - 8

1шт.

3

NSS

NOT SOLD SEPARAT

Decal

1шт.

4

86577168

CUTTING EDGE,Weld On, 7 Hole, 152.4mm W x 1825.8mm L

Weld On Blade

1шт.

5

87014503

CUTTING EDGE

Cutter Left Hand

1шт.

6

87014502

CUTTING EDGE

Cutter Right Hand

1шт.

7

87015460

PLATE

2шт.

8

9829786

BAR

Skid Bar

4шт.

REF

INSTRUCTION

EXTENDED LOW PROFILE

1шт.

2

86618354

BUCKET

1676 mm (66 Inch); Order From Machinery Price List; Incl. 3 - 8

1шт.

3

NSS

NOT SOLD SEPARAT

Decal

1шт.

4

87015514

CUTTING EDGE

Weld On Blade

1шт.

5

87014503

CUTTING EDGE

Cutter Left Hand

1шт.

6

87014502

CUTTING EDGE

Cutter Right Hand

1шт.

7

9822175

PLATE

2шт.

8

9829786

BAR

Skid Bar

3шт.

2

86618355

BUCKET

1829 mm (72 Inch); Order From Machinery Price List; Incl. 3 - 8

1шт.

3

NSS

NOT SOLD SEPARAT

Decal

1шт.

4

86577168

CUTTING EDGE,Weld On, 7 Hole, 152.4mm W x 1825.8mm L

Weld On Blade

1шт.

5

86510316

CUTTING EDGE

Cutter Left Hand

1шт.

6

86510315

CUTTING EDGE

Cutter Right Hand

1шт.

7

87015460

PLATE

2шт.

8

86510314

BAR

Skid Bar

3шт.

2

86633059

BUCKET

BUCKET, 1981 mm (78 Inch); Order From Machinery Price List; Incl. 3 - 8

1шт.

3

NSS

NOT SOLD SEPARAT

Decal

1шт.

4

86577170

CUTTING EDGE,Weld On, 9 Hole, 152.4mm W x 1978.2mm L

Weld On Blade

1шт.

5

87015312

CUTTING EDGE

Cutter Left Hand

1шт.

6

87015311

CUTTING EDGE

Cutter Right Hand

1шт.

7

87015460

PLATE

2шт.

8

9829786

BAR

Skid Bar

3шт.
