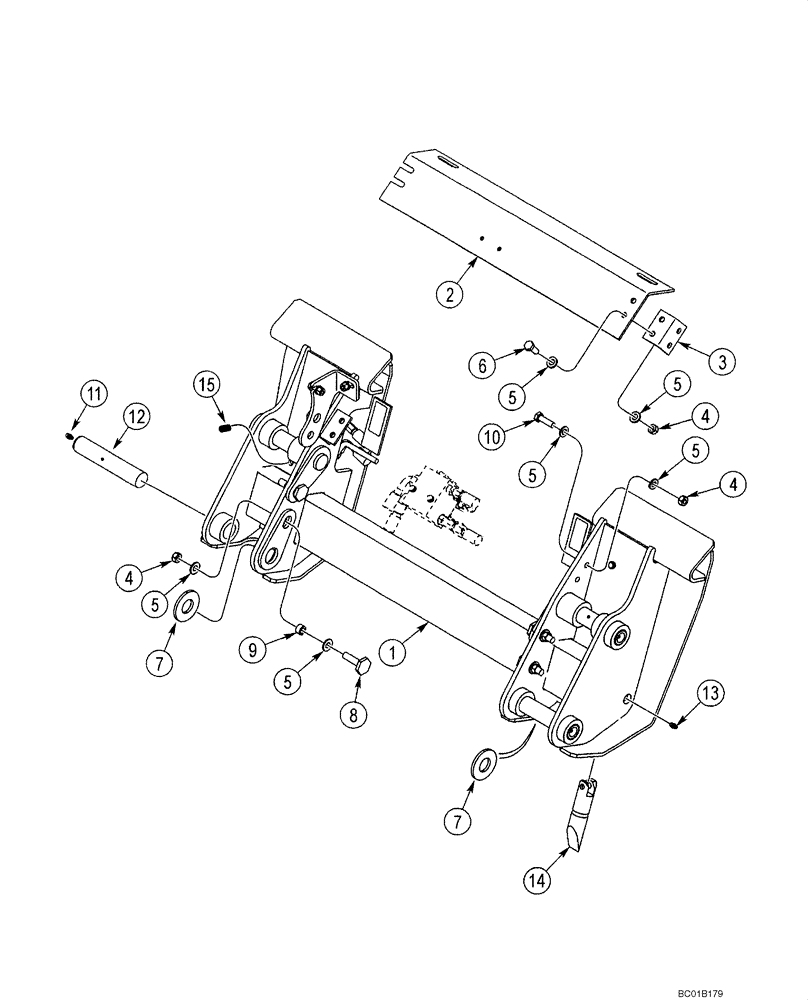

Запчасти Case IH 440 (09-05) - COUPLER, HYDRAULIC (09) - CHASSIS

1

404599A5

FRAME,W/Coupler

1шт.

2

87620412

PLATE

Protective Cover

1шт.

3

409783A1

BRACKET

Coupler Cover

2шт.

4

86512554

NUT,M10 x 1.5, Cl 10

12шт.

5

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

24шт.

6

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

4шт.

7

86512837

WASHER,1.38" ID x 2.5" OD x 0.17" Thk

2шт.

8

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

4шт.

9

906091R1

SPACER,10.7mm ID x 17.14mm OD x 9.5mm L

Spacer; 3/8 x 0.375 x Strg Pipe

4шт.

10

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

4шт.

11

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

4шт.

12

87659406

PIN,31.75mm OD x 169.2mm L

Replaces 394582A2

4шт.

13

87414

LUBE NIPPLE,1/4" - 28

2шт.

14

87413030

PIN

Latch Pin; If Used

2шт.

14

87758365

PIN,31.75mm OD x 142.3mm L

Latch Pin

2шт.

15

9617020

PLUG,1/4" - 18 x 0.48"

If Used

2шт.

D55216

PAD,2" x 9"

1шт.
