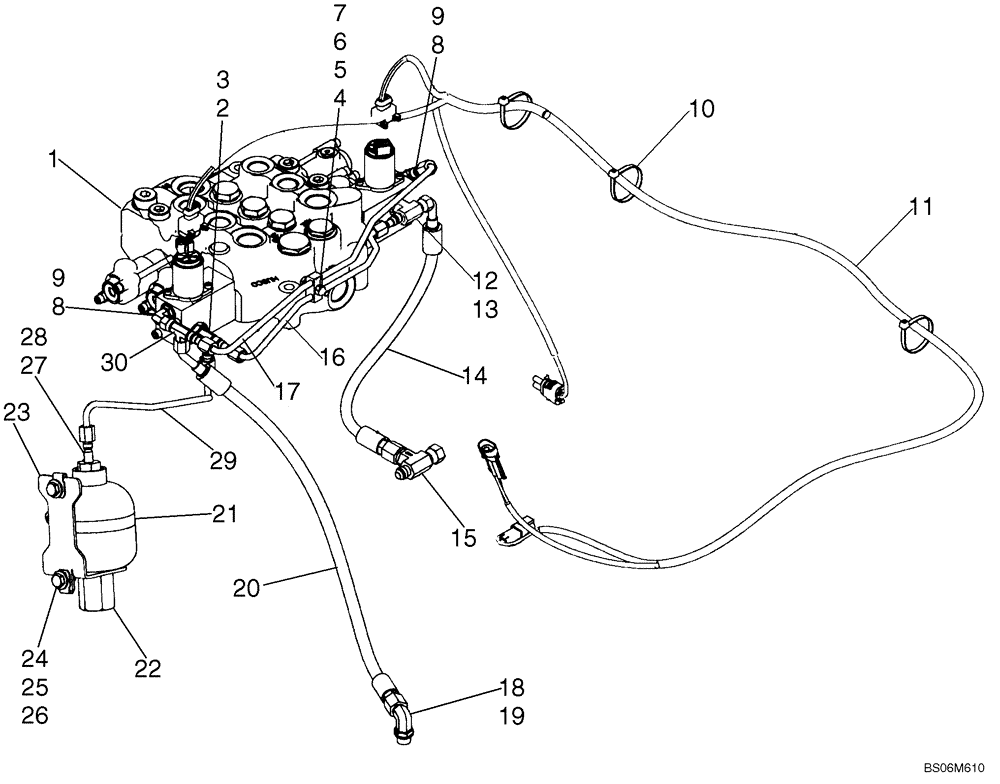

Запчасти Case IH 440 (08-07) - HYDRAULICS - ATTACHMENT, IMPLEMENT (PILOT CONTROL) (08) - HYDRAULICS

87575606

SERVICE KIT

Electro-Hydraulic Valve Kit; Incl 1 - 30

1шт.

1

87546975

HYDRAULIC VALVE

Pilot Control Models With Hydraulic Attachment; See Fig. 08-23

1шт.

2

86513019

TEE,1-5/16" - 12 ORB x 1-1/4" JIC x 1-1/4" JIC

Incl. 3

1шт.

3

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

4

608089

CLAMP

1шт.

5

86624181

WASHER,M6

1шт.

6

80120101

BOLT

M6 x 30

1шт.

7

87030561

NUT,M6 x 1, Cl 8

1шт.

8

216773

90 ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

Incl. 9

2шт.

9

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

10

529070

CABLE TIE,368.3mm L

CABLE STRAP

3шт.

11

87447970

HARNESS

Electro-Hydraulic Harness

1шт.

12

16989

TEE,7/16"-20, 37 Degree x 7/8"-14, O-Ring Br

Incl. 13

1шт.

13

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

14

87563974

HOSE

424 mm (16.69 in) EH Supply

1шт.

15

87438766

TEE

Tee With Check Valve

1шт.

16

87563970

HYD TUBE,6.35 mm OD

Pilot Pressure

1шт.

17

87564001

HYD TUBE,6.35 mm OD

Drain

1шт.

18

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 19

1шт.

19

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

20

87460042

HOSE,6.35mm ID x 560mm L

Case Drain

1шт.

21

86625032

HOSE CLAMP,88.9mm ID - 65mm ID

1шт.

22

87376969

ACCUMULATOR

1шт.

23

87621245

ANGLE

Mounting Bracket

1шт.

24

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

25

122158A1

NUT,M8, U

2шт.

26

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

27

139398

HYD CONNECTOR,9/16" - 18 ORB x 7/16" - 20 JIC

Incl. 28

1шт.

28

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

29

87447764

HYD TUBE,6.35 mm OD

Pilot Pressure

1шт.

30

86513653

TEE,7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC

1шт.
