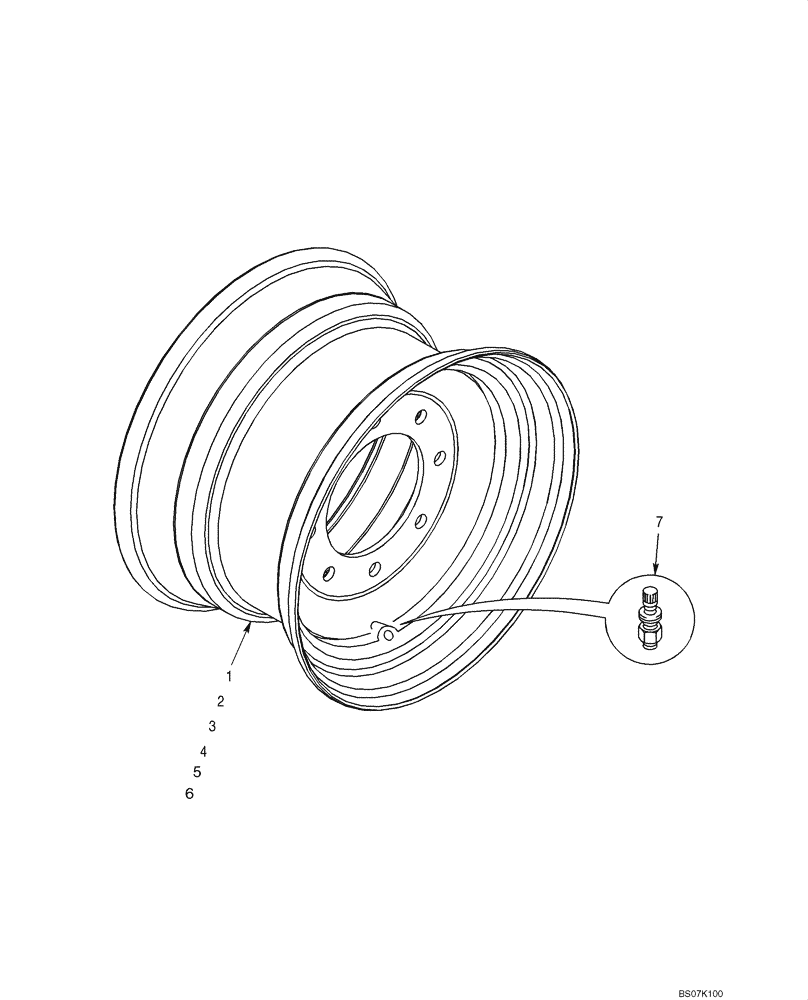

Запчасти Case IH 440 (06-66) - WHEELS (06) - POWER TRAIN

1

408856A3

RIM

WHEEL 16,5 x 8,25, Stamped Center; Used With 33/10 x 16.5 Tire; Uses Ref 7 Valve Stem And Ref 10 Nut

4шт.

2

408450A1

RIM

WHEEL 16,5 x 9,75, Stamped Center; Used With 12 x 16.5 Inch Tire; Models With 64 in Over Tire Width; Uses Ref 7 Valve Stem And Ref 10 Nut

4шт.

3

409574A1

RIM

WHEEL 16.5 x 9.75, Stamped Center; Used With 12 x 16.5 Inch Tire; Models With 69 in Over Tire Width; Uses Ref 7 Valve Stem And Ref 10 Nut

4шт.

4

409174A2

RIM

WHEEL 16.5 x 12, Stamped Center; Used With 33/15.5 x 16.5 Tire; Models With 71 in Over Tire Width; Uses Ref 7 Valve Stem And Ref 10 Nut

4шт.

5

87534387

RIM

Rim, 16.5 X 9.75 Full Center, 13.84mm Offset; Uses Ref 7 Valve Stem And Ref 9 Nut; Models With 64 in Over Tire Width

4шт.

6

87578653

RIM

Rim, 16.5 X 9.75 Full Center; Uses Ref 7 Valve Stem And Ref 9 Nut; Models With 72 in Over Tire Width

4шт.

7

294579A1

VALVE STEM

4шт.

9

86512498

FLANGE NUT,M16 x 2, Cl 10

32шт.

10

408127A1

WHEEL NUT,Conical End Hex, M16 x 2.0, 14.80mm High, Cl 10

Nut, M16 X 2, 90 Deg Taper

32шт.
