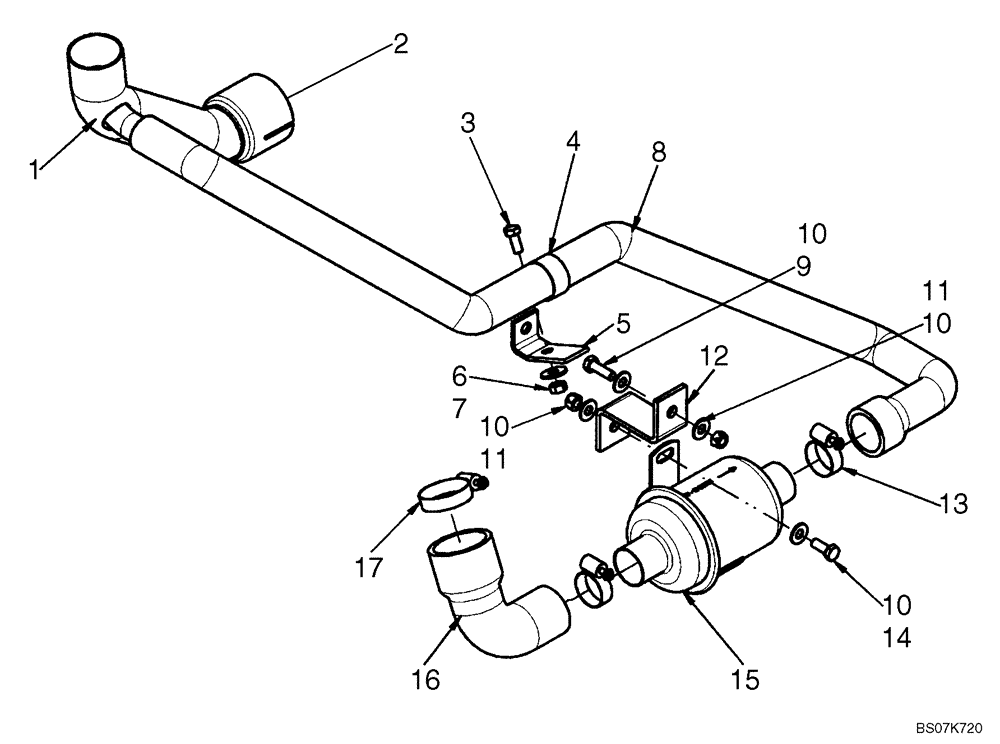

Запчасти Case IH 440 (02-04) - EXHAUST SYSTEM, ASPIRATOR (02) - ENGINE

87638327

SERVICE KIT

Kit, Aspirator; Incl 1 - 17

1шт.

1

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

1шт.

2

87654923

EXHAUST SYSTEM PIPE

Aspirator

1шт.

3

86625000

BOLT,Hex, M8 x 18mm, Cl 8.8, Full Thd

1шт.

4

87648719

CLAMP,36.5mm, Coat, 10.3mm Bolt Hole, P Type

CLAMP 36.5 mm P Insul 3/8 Bolt

1шт.

5

87615745

BRACKET

Aspirator Hose Support

1шт.

6

9706690

NUT,M8 x 1.25, Cl 8

1шт.

7

86639313

WASHER,9mm ID x 24mm OD x 2mm Thk

1шт.

8

87615743

HOSE,25.40 mm ID, 38.00 mm ID x 1862.00 mm, SAE 20R4

Tail Pipe To Aspirator

1шт.

9

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

10

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

11

9628098

NUT,M8 x 1.25, Cl 10

2шт.

12

87615741

BRACKET

Aspirator Mounting

1шт.

13

84674

HOSE CLAMP,33.3mm - 57.1mm, Worm Gear

2шт.

14

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

15

406089A2

VALVE

Aspirator Check

1шт.

16

87615742

HOSE

Air Cleaner To Aspirator

1шт.

17

86624194

HOSE CLAMP,1.81” - 2.75”, Worm Gear

If Used

1шт.

17

84137995

HOSE CLAMP,SAE #36 OD

Turnkey Grip 36

1шт.

18

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Not Illustrated

1шт.
