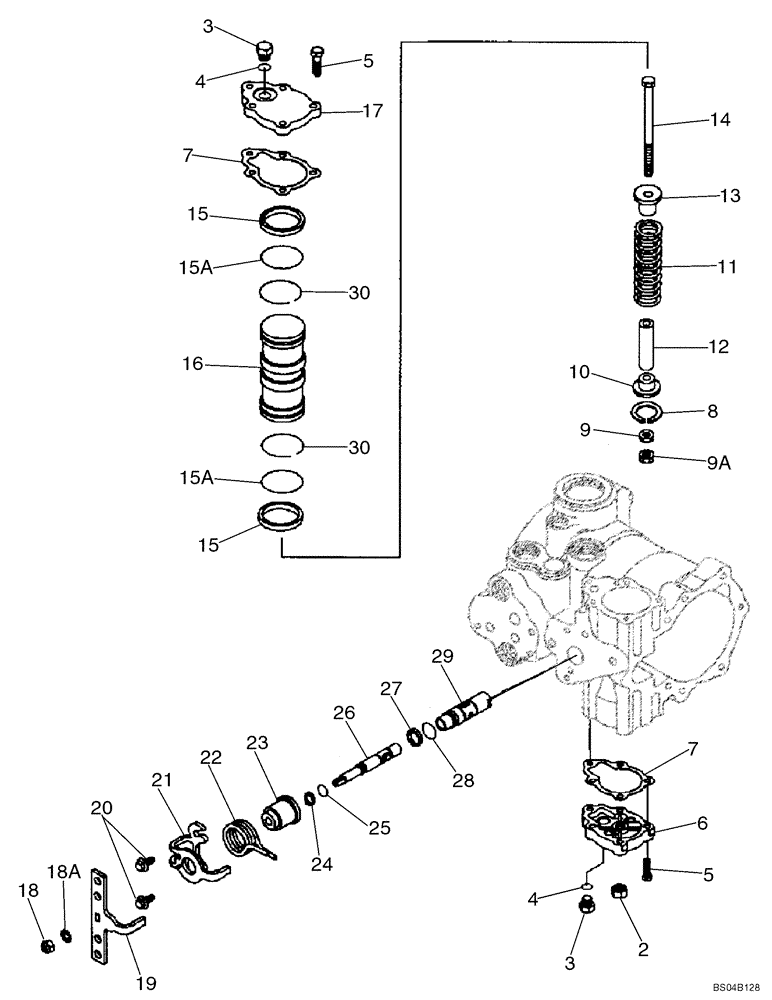

Запчасти Case IH 440 (06-34) - PUMP, TANDEM (440) (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
*
Front Pump
1шт.
87043500
PUMP,46 CC
Incl. 2 - 30
1шт.
87043500R
REMAN-HYD PUMP
REMANUFACTURED HYDRAULIC PUMP
1шт.
87043500C
CORE-HYDRAULIC PUMP
Return Number, HYDRAULIC PUMP
1шт.
2
N13260
NUT,Inverted Lock
5/8 NF
1шт.
3
76349
PLUG,9/16" - 18 ORB
Incl. 4
2шт.
4
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
5
H438321
BOLT,M6 x 1 x 20mm, Cl 10.9
1/4 x 1-1/4; 8
10шт.
6
H436065
COVER
Included in 140008A1 Seal Kit
1шт.
7
N14063
GASKET
2шт.
8
N13255
RING
1шт.
9
425-116
NUT,3/8" - 24, Gr 5
1шт.
9b
324604A1
NUT,Lock
3/8 in
1шт.
10
N13241
GUIDE,1.292" OD
1шт.
11
N13226
SPRING
1шт.
12
N13242
SLEEVE
1шт.
13
N14666
GUIDE,1.292" OD
1шт.
14
370531A1
SCREW
1шт.
H673773
KIT
Incl. 15, 15A; Incl. Rings For Rear Pump Pistons
1шт.
15
N14668
RING, PISTON
Included in 140008A1 Seal Kit
4шт.
15a
238-5131
O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro
Included in 140008A1 Seal Kit
2шт.
140008A1
GASKET KIT
Overhaul Seal And Gasket Kit; Incl. (10) Rings, (20) O-Rings, (6) Gaskets, (2) Seals; Incl. Ref 7, 15, 15A, 24, 25, 27, 28, 30
1шт.
16
87039622
PISTON ASSY
Incl. 15, 15A, 30
1шт.
17
H436053
COVER
1шт.
18
H436054
SPECIAL NUT,Lock, 5/16" - 18
1шт.
18a
493-41033
LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk
1шт.
19
436415A1
HANDLE
1шт.
20
H435770
FLANGE BOLT,1/4" - 20 x 5/8"
2шт.
21
436416A1
BRACKET
1шт.
22
407060A1
SPRING
1шт.
23
87039613
GUIDE RING
1шт.
24
86993484
BACK-UP RING,0.390"
Included in 140008A1 Seal Kit
1шт.
25
86993475
O-RING
Included in 140008A1 Seal Kit
1шт.
26
87039614
SPOOL
Incl. 24, 25
1шт.
27
86993483
BACK-UP RING,0.643"
Included in 140008A1 Seal Kit
1шт.
28
238-5016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro
O-Ring; Included in 140008A1 Seal Kit
1шт.
29
87039615
SLEEVE
Incl. 27, 28
1шт.
30
100536A1
BEARING WASHER,47.24mm ID x 50.34mm OD x 3.1mm Thk
Included in 140008A1 Seal Kit
2шт.
Выбрано товаров: 38
