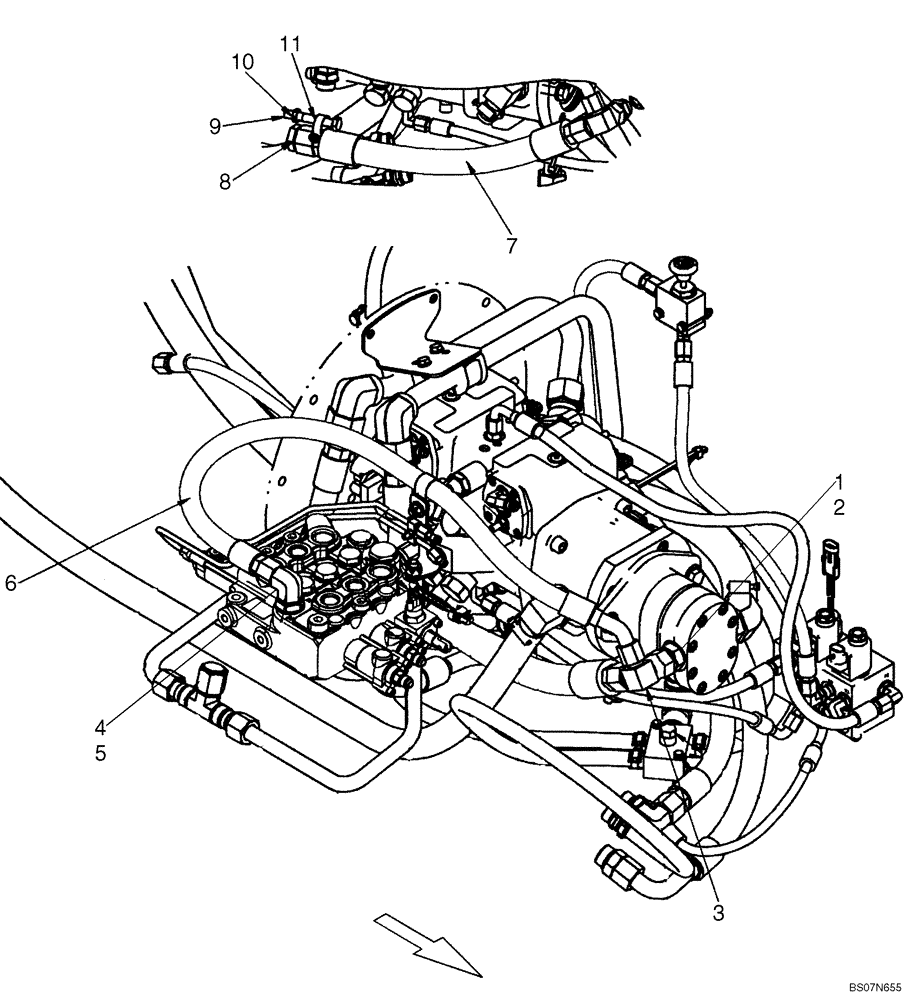

Запчасти Case IH 440 (06-30) - HYDROSTATICS - RESONATOR, WITH PILOT CONTROL (440 EUROPE) (06) - POWER TRAIN

1

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 2

1шт.

2

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

3

87441649

ADAPTER

1шт.

4

84570

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl 5

1шт.

5

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

6

87720912

HOSE,15.88mm ID x 950mm L

Hose, Valve Supply 950mm (37 13/32 in.)

1шт.

7

87462103

HOSE ASSY.

Hose, Resonator

1шт.

8

9790527

PLUG,1-5/16" - 12 JIC

1шт.

9

43158

BOLT,Hex, M12 x 80mm, Cl 8.8

1шт.

10

323238

THIN NUT,Hex, M12, 1.75mm Pitch, Cl 05

1шт.

11

87039085

HOSE CLAMP,32mm - 54mm

1шт.
