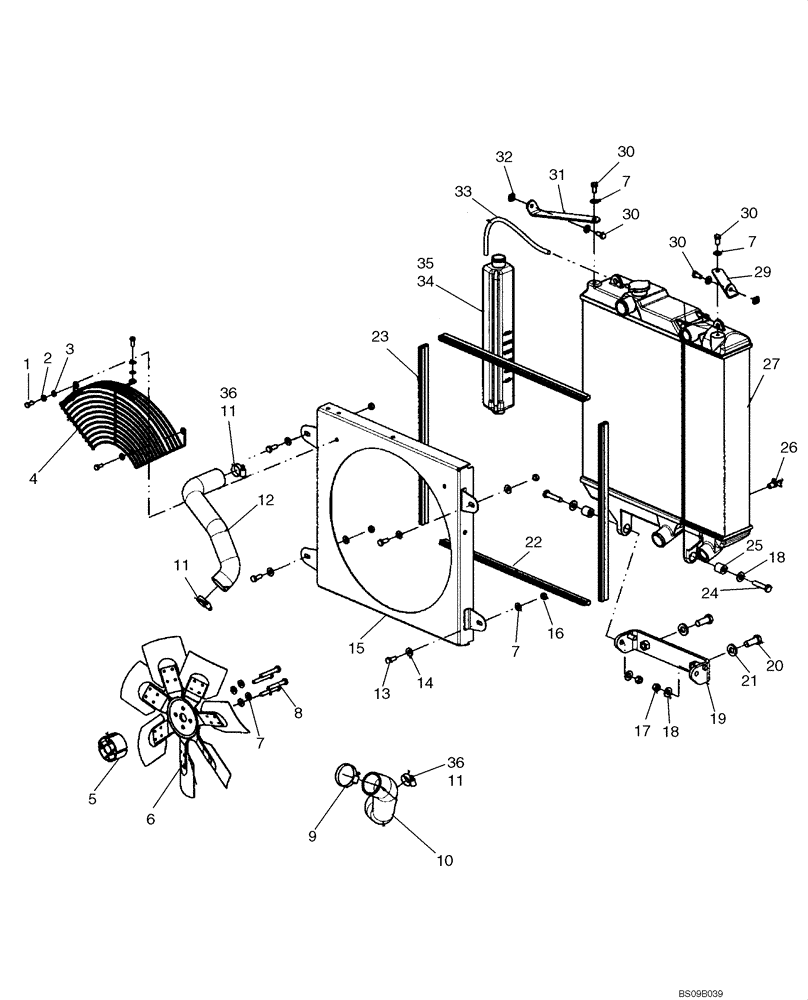

Запчасти Case IH 440 (02-01) - FAN, RADIATOR/OIL COOLER - COOLANT RECOVERY SYSTEM (02) - ENGINE

1

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

2

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

3

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

4

87594970

GUARD

Fan Guard

1шт.

5

87565746

SPACER

Fan Spacer, 60mm (Europe)

1шт.

5

87565745

SPACER

Fan Spacer, 43mm

1шт.

6

87025470

FAN

480 mm (18 29/32 in.) Dia.; If Used

1шт.

6

87737293

FAN,7 Blades, 480mm OD

480 mm (18 29/32 in.) Dia.; If Used

1шт.

7

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

12шт.

8

120071

BOLT,Hex, M10 x 65, 8.8

4шт.

8

120073

BOLT,Hex, M10 x 86.58mm, Cl 8.8

Used With 87565746 Fan Spacer

4шт.

9

86625032

HOSE CLAMP,88.9mm ID - 65mm ID

If Used

1шт.

9

86050197

HOSE CLAMP,58.6mm - 82.5mm, Worm Gear

Clamp-Hose 2.31-3.25

1шт.

10

87661380

RADIATOR HOSE,46.00 mm ID, 58.00 mm ID x 199.50 mm, SAE 20R4 Class D1 Or D2

Formed, Lower

1шт.

11

84674

HOSE CLAMP,33.3mm - 57.1mm, Worm Gear

1-3шт.

12

87661378

RADIATOR HOSE,45.00 mm ID x 287.40 mm, SAE 20R4 Class D1 Or D2

Formed, Upper

1шт.

13

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

If Used

4шт.

13

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

4шт.

14

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

If Used

4шт.

15

87660828

SHROUD

Fan Shroud

1шт.

16

86500689

NUT,M10 x 1.5, Cl 10

4шт.

17

87533547

NUT,Prev Torque, M12, 1.75mm Pitch, Cl 10

Nut, M12 x 1.75 10 ZND

2шт.

18

86625254

WASHER,13.5mm ID x 28mm OD x 2.5mm Thk

4шт.

19

87676100

BRACKET

Bracket, Lower Hinge Mount; If Used

1шт.

19

87720465

BRACKET

Bracket, Lower Hinge Mount, Gray

1шт.

20

43168

BOLT,Hex, M16 x 40mm, Cl 8.8

2шт.

21

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

2шт.

22

87578980

RUBBER SEAL,590mm L

Bulb Seal, 590mm (23 1/4 in.)

2шт.

23

87648128

RUBBER SEAL,562mm L

Bulb Seal, 562mm (22 1/8 in.)

2шт.

24

87021825

BOLT,Hex, M12 x 55mm, Cl 10.9

If Used

2шт.

24

43263

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

2шт.

25

87626729

SPACER,12.8mm ID x 25.4mm OD x 25.4mm L

2шт.

26

86625234

DRAINCOCK/TAP SUPPLY,1/4" NPTF

1шт.

27

87660842

RADIATOR

Radiator And Oil Cooler; See Fig 02-02

1шт.

28

87687375

RADIATOR CAP

Radiator Cap

1шт.

29

87651800

BRACKET

Upper Radiator Mount, LH

1шт.

30

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

3-4шт.

31

87651799

BRACKET

Upper Radiator Mount With Single Mount Hole, RH; No Longer Used, Order 87735277

1шт.

31

87735277

BRACKET

Upper Radiator Mount With Slotted Mount Holes, RH

1шт.

32

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

2шт.

33

87534725

HOSE,7.9mm ID x 400mm L, SAE 20R3

Coolant Recovery

1шт.

34

87020980

BOTTLE,2L

Coolant Recovery Bottle; Incl. 35

1шт.

35

257884A1

CAP

Cap

1шт.

36

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

2шт.
