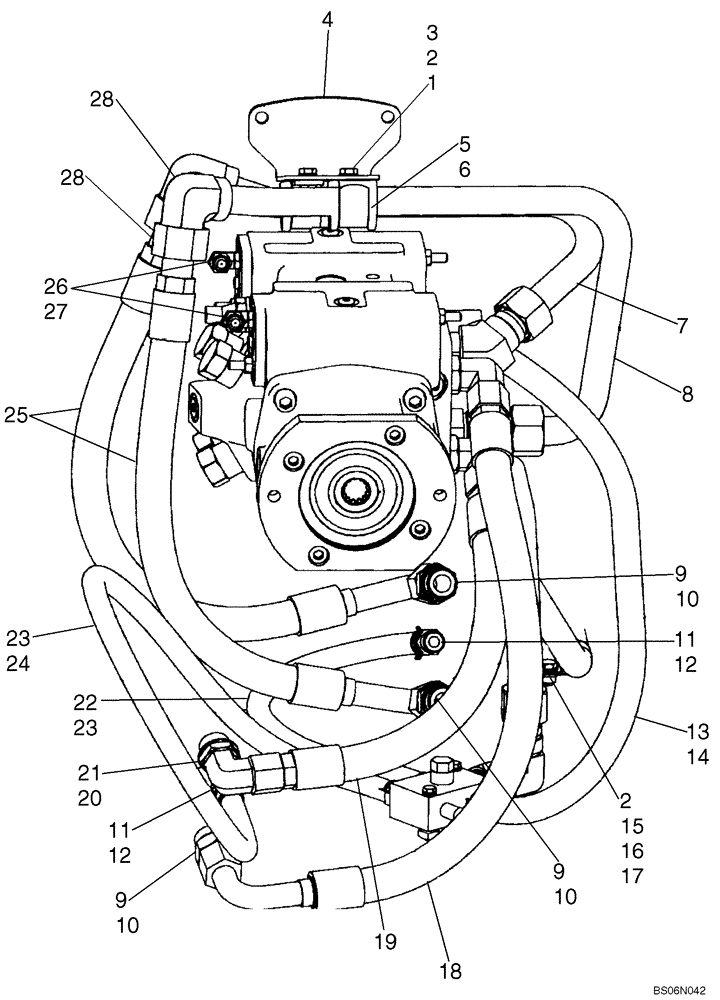

Запчасти Case IH 440 (06-21) - HYDROSTATICS - HOSES (440 WITH PILOT CONTROL) (06) - POWER TRAIN

1

9628098

NUT,M8 x 1.25, Cl 10

2шт.

2

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

3

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

4

87564008

CLAMP BRACKET

1шт.

5

D67297

BLOCK

Isolation

2шт.

6

D68846

CLAMP

2шт.

7

87547068

HYD TUBE,15.88 mm ID x 25.4 mm OD

Motor To Pump Loop

1шт.

8

87600630

HYD TUBE,15.88 mm ID x 25.4 mm OD

Motor To Pump Loop

1шт.

9

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 10

3шт.

10

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

11

87010108

FITTING,1/2" Hose Bead x 3/4" - 16 ORB

Incl 12

2шт.

12

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

13

87563995

HOSE,15.88 mm ID x 1835.00 mm

Pump Drain

1шт.

14

87443511

CLAMP,22mm - 26mm, CTB-24, Style C

2шт.

15

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

1шт.

16

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

17

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

1шт.

18

87547060

HOSE

675 mm (26.57 in) Motor To Pump Loop

1шт.

19

87547061

HOSE,19.05 mm ID x 1270.00 mm

Motor To Pump Loop

1шт.

20

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 21

1шт.

21

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

22

87022175

HOSE,12.7mm ID x 600mm L

Case Drain

1шт.

23

87443510

HOSE CLAMP,18.4mm Static ID x 15mm W

4шт.

24

87022174

HOSE ASSY.

950 mm (37.40 in) Case Drain

1шт.

25

87547062

HOSE

(646 mm, 25.43 in) Motor To Pump Loop

2шт.

26

87604075

ADAPTER

Connector With 1.0 mm Orifice

2шт.

27

86512936

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Incl 28

2шт.

28

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.
