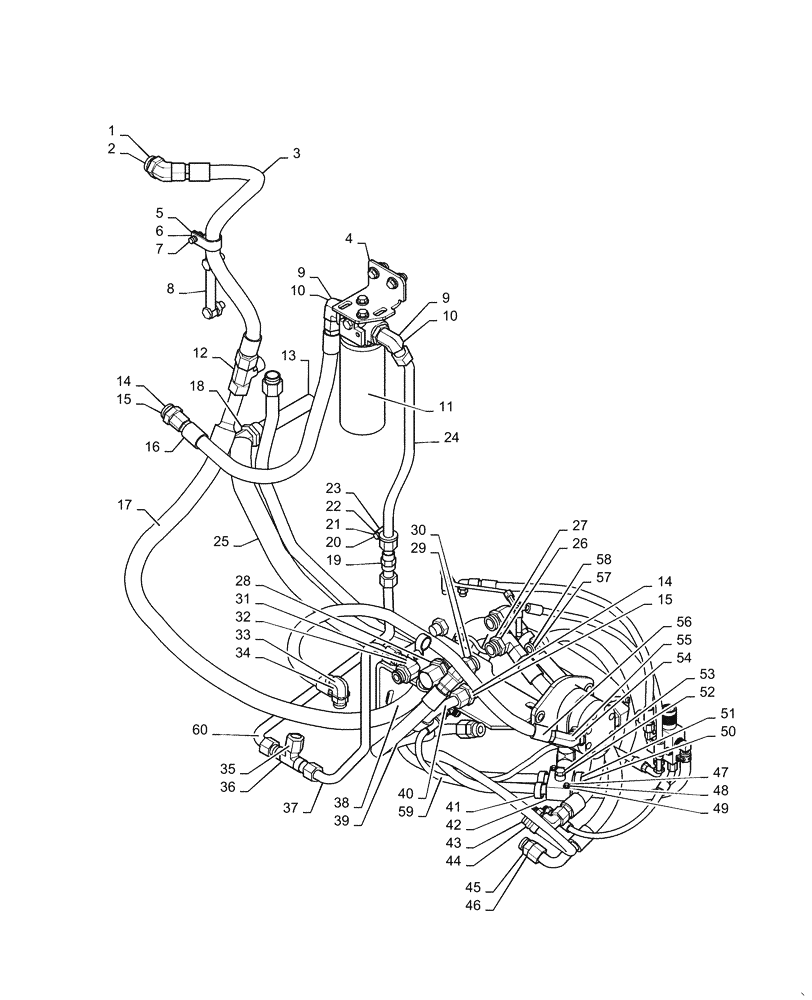

Запчасти Case IH 440 (06-09) - HYDROSTATICS - PUMP, SUPPLY AND RETURN (440) (06) - POWER TRAIN

1

87657980

ELBOW

Elbow; 37FL 45 ADJ 3/4 x 1.0 Tube; Incl 2; To Top Of Oil Cooler, See Figure 02-01

1шт.

2

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

3

87653980

HOSE,19.05mm ID x 810mm L, SAE 100R4

Upper Cooler

1шт.

4

REF

INSTRUCTION

For Filter Mounting, See Figure 06-32

1шт.

5

86639001

CLAMP,30.2mm, Coat, 11.9mm Bolt Hole, P Type

1шт.

6

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

7

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

8

87374752

GAUGE

Liquid Level

1шт.

9

87021824

90 ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 5/16"-12, O-Ring

Incl 10

2шт.

10

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

11

87430661

FILTER

Hydrostatic Filter; For Breakdown And Mounting, See Figure 06-32, See Figure 02-01

1шт.

12

9790547

TEE,1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF Br

1шт.

13

H151399

FILTER STRAINER

Suction Line

1шт.

14

233705

HYD CONNECTOR,1-5/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 15; To Bottom Of Oil Cooler

1шт.

15

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

16

87720240

HOSE,19.05mm ID x 760mm L

Hose, Lower Cooler, 760mm (29 15/16 in.)

1шт.

17

87458996

HOSE ASSY.

1680 mm (66.14 in); Suction

1шт.

18

87033823

FITTING,1/4" Hose x 1/8" NPTF, Fem, Barbed

1шт.

19

144121

UNION,1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

20

87445136

HYD TUBE,18.9 mm ID x 29 mm OD x 21, 2 mm L

3/4

1шт.

21

87042897

SPACER

1шт.

22

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

23

87301359

CLAMP,28.6mm, 10.3mm Bolt Hole, P Type

1шт.

24

87660856

HYD TUBE,19.05 mm OD x 422.6, 172.8 mm L

Formed Tube; Valve To Filter, LH Wall

1шт.

25

87022438

HOSE,12.7mm ID x 1610mm L, SAE 100R4

Suction

1шт.

26

87021824

90 ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 5/16"-12, O-Ring

Incl 27; If Used

3шт.

27

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

28

87418259

FITTING

90 Deg 20ORB x 16 Bead

1шт.

29

22907

ELBOW,0.50" ID x 175.00", SAE J517, SAE J516, SAE J846, SAE J1273

Incl 30; If Used

1шт.

30

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

31

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 32

1шт.

32

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

33

84570

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl 34

1шт.

34

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

35

219606

CAP,1-1/16" - 12 JIC

1шт.

36

15694

TEE,1 1/16"-12 37 Degree

1шт.

37

87446248

HYD TUBE,19.05 mm OD x 344.1, 215.2 mm L

Valve Out To Filter

1шт.

38

86536660

HOSE CLAMP,25mm - 44mm

1.75 in

1шт.

39

87022172

HOSE ASSY.,19.05mm ID x 650mm L

650 mm (25.59 in); Loop; If Used

1шт.

39

87733917

HOSE

600 mm (23.62 in); Loop; If Used

1шт.

40

87417085

HOSE ASSY.,19.05mm ID x 445mm L

445 mm (17.52in); Loop; If Used

1шт.

40

87733916

HOSE

460 mm (18.11 in); Loop; If Used

1шт.

41

87443510

HOSE CLAMP,18.4mm Static ID x 15mm W

4шт.

42

87437351

MANIFOLD

Return, Oil

1шт.

43

87010108

FITTING,1/2" Hose Bead x 3/4" - 16 ORB

Incl 44

2шт.

44

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

45

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 46; If Used

2шт.

46

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

47

86977790

BOLT,Hex, M6 x 45mm, Cl 8.8

2шт.

48

87404992

SQUARE NUT,M6 x 1.0, Cl 8

2шт.

49

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

50

REF

INSTRUCTION

Brake; See Figure 07-01

1шт.

51

87443511

CLAMP,22mm - 26mm, CTB-24, Style C

24 mm

2шт.

52

76349

PLUG,9/16" - 18 ORB

Incl. 53

1шт.

53

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

54

100197

ELBOW,45 Degree, 7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl 55

1шт.

55

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

56

87547070

HOSE,15.88mm ID x 1000mm L

1000 mm (39.37 in); Valve Supply

1шт.

57

87311640

HYD CONNECTOR

5/8 HOSE x 1-1/16-12 ORB STR Barb; Incl 58

1шт.

58

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

59

87022175

HOSE,12.7mm ID x 600mm L

1шт.

60

87445138

HYD TUBE,19.05 mm OD

1шт.
