Запчасти Case IH 440 (06-02D) - HYDROSTATICS - DRIVE MOTORS (440) (06) - POWER TRAIN

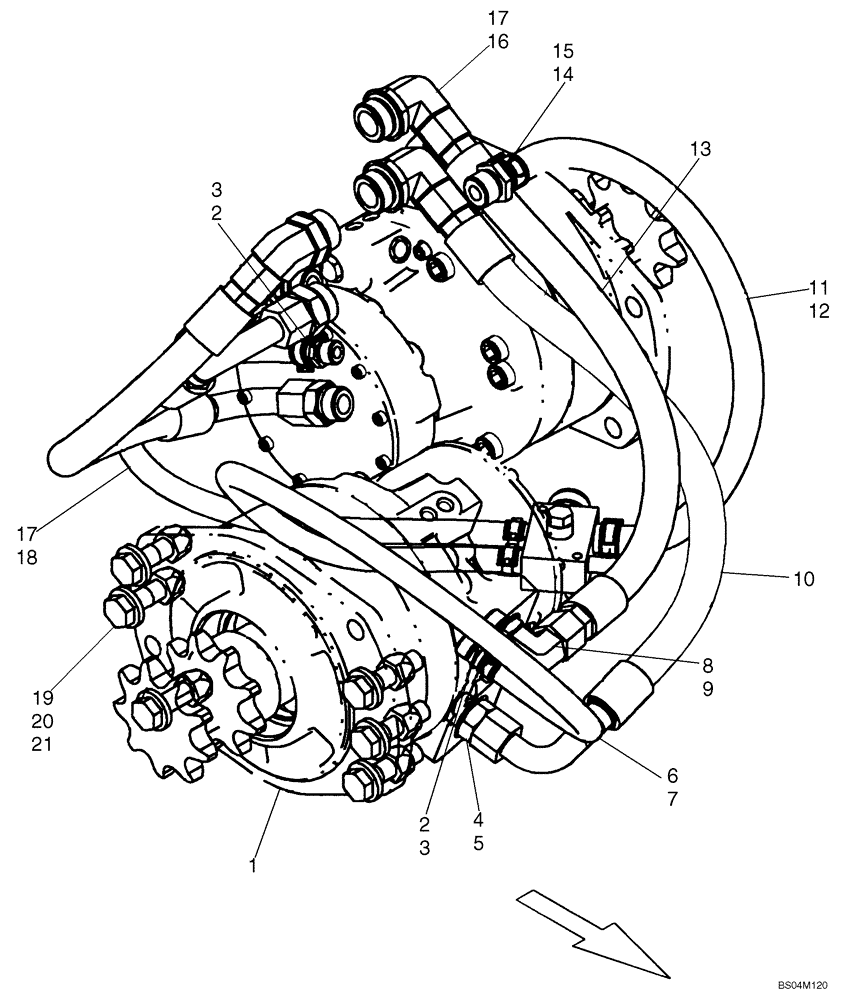

Схема запчастей Case IH 440 - (06-02D) - HYDROSTATICS - DRIVE MOTORS (440) (06) - POWER TRAIN
11
12
9
14
3
4
17
18
8
7
16
3
17
15
6
2
1
19
20
5
10
13
21
2

Артикул

Название

Примечание

Количество

1

87035341

HYDRAULIC MOTOR,470CC

See Figure 06-18 - 06-20

2шт.

1

87035341R

REMAN-HYD MOTOR

REMANUFACTURED HYD MOTOR

2шт.

1

87035341C

Return Number, HYD MOTOR

CORE-MOTOR HYDRAULIC

2шт.

2

87010108

FITTING,1/2" Hose Bead x 3/4" - 16 ORB

Incl. 3

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 5

4шт.

5

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

6

87022174

HOSE ASSY.

Case Drain

1шт.

7

87443510

HOSE CLAMP,18.4mm Static ID x 15mm W

4шт.

8

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl. 9

3шт.

9

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

10

87417084

HOSE ASSY.

1шт.

11

87459045

HOSE

Case Drain; 550 mm (21.65 in); If Used

1шт.

11

87016334

HOSE,15.88mm ID x 535mm L

Case Drain, If Used

1шт.

12

87443511

CLAMP,22mm - 26mm, CTB-24, Style C

24 mm

2шт.

13

87021266

HOSE ASSY.

1шт.

14

87311640

HYD CONNECTOR

Stem, 5/8 ID x 1-1/16 -12; Incl. 15

1шт.

15

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

16

570024

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 5/16"-12, O-Ring

Incl. 17

3шт.

17

305412

O-RING 1-11/64 ID x 7/64

1шт.

18

87022175

HOSE,12.7mm ID x 600mm L

Case Drain

1шт.

19

9828248

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9, Full Thd

12шт.

20

86625258

WASHER,17.5mm ID x 34mm OD x 5mm Thk

12шт.

21

86512555

NUT,M16 x 2, Cl 10

12шт.

Выбрано товаров: 24
