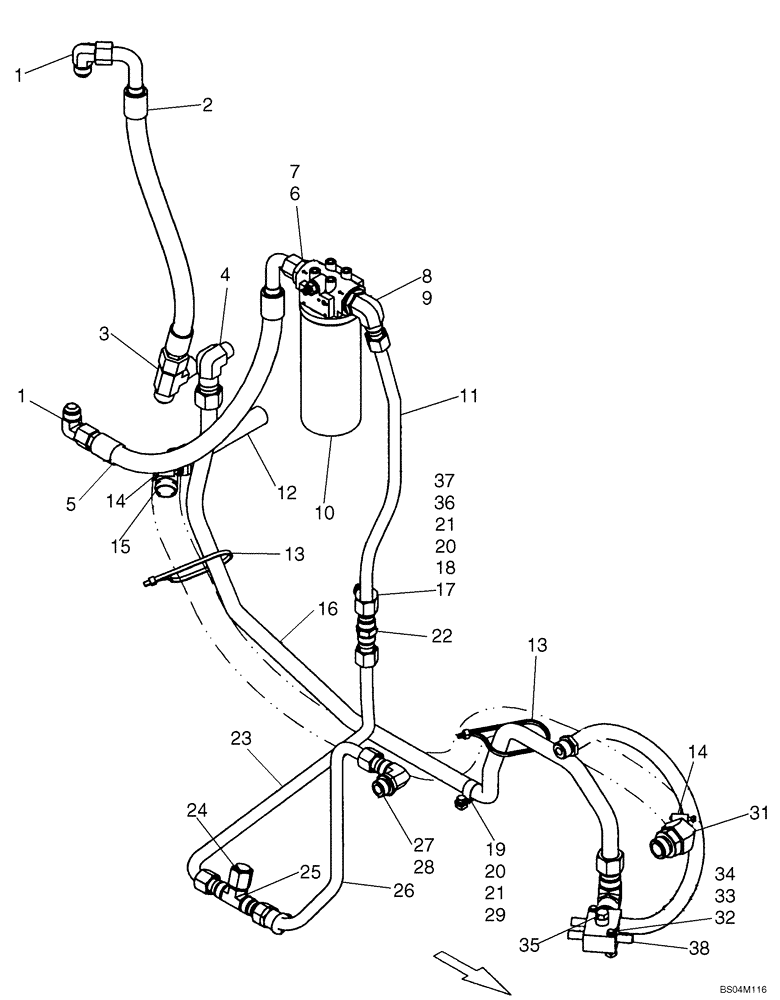

Запчасти Case IH 440 (06-02) - HYDROSTATICS - PUMP, SUPPLY AND RETURN (440) (06) - POWER TRAIN

1

144120

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

2шт.

2

87453235

HOSE ASSY.

Oil Cooler

1шт.

3

9790547

TEE,1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF Br

1шт.

4

9615396

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 3/4"-14, NPTF

1шт.

5

87446945

HOSE ASSY.

Oil Cooler; If Used

1шт.

5a

87641914

HOSE

Oil Cooler Hose; 800 mm (31.5 in); If Used

1шт.

6

233705

HYD CONNECTOR,1-5/16" - 12 ORB x 1-1/16" - 12 JIC

Incl. 7; If Used

1шт.

7

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

8

570024

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 5/16"-12, O-Ring

Incl. 9

2-4шт.

9

305412

O-RING 1-11/64 ID x 7/64

2шт.

10

87430661

FILTER

Hydrostatic Filter; For Mounting, See Figure 06-08

1шт.

11

87446084

HYD TUBE,19.05 mm OD

Valve Out To Filter

1шт.

12

H151399

FILTER STRAINER

Suction Line

1шт.

13

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

14

214-3132

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

2 in

2шт.

15

87033823

FITTING,1/4" Hose x 1/8" NPTF, Fem, Barbed

1шт.

16

87458893

HYD TUBE,25.4 mm OD

Case Drain

1шт.

17

87445136

HYD TUBE,18.9 mm ID x 29 mm OD x 21, 2 mm L

3/4

1шт.

18

87301359

CLAMP,28.6mm, 10.3mm Bolt Hole, P Type

1шт.

19

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

1шт.

20

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

21

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

M8 x 1.25

2шт.

22

144121

UNION,1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

23

87445138

HYD TUBE,19.05 mm OD

Valve Out To Filter

1шт.

24

219606

CAP,1-1/16" - 12 JIC

1шт.

25

15694

TEE,1 1/16"-12 37 Degree

1шт.

26

87446248

HYD TUBE,19.05 mm OD x 344.1, 215.2 mm L

Valve Out To Filter

1шт.

27

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl. 28

1шт.

28

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

29

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

30

86050288

ELBOW,90 Degree, 1-5/16" - 12 JIC x 1-5/16" - 12, 37 Degrees Fem Sw

1шт.

31

87033824

FITTING,45 Degree, 1 1/4" Hose x 1 5/16"-12 ORB Beaded

1шт.

32

86977790

BOLT,Hex, M6 x 45mm, Cl 8.8

2шт.

33

87404992

SQUARE NUT,M6 x 1.0, Cl 8

M6

2шт.

34

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

35

76349

PLUG,9/16" - 18 ORB

1шт.

36

87042897

SPACER

1шт.

37

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

1шт.

38

87437351

MANIFOLD

Return, Oil

1шт.
