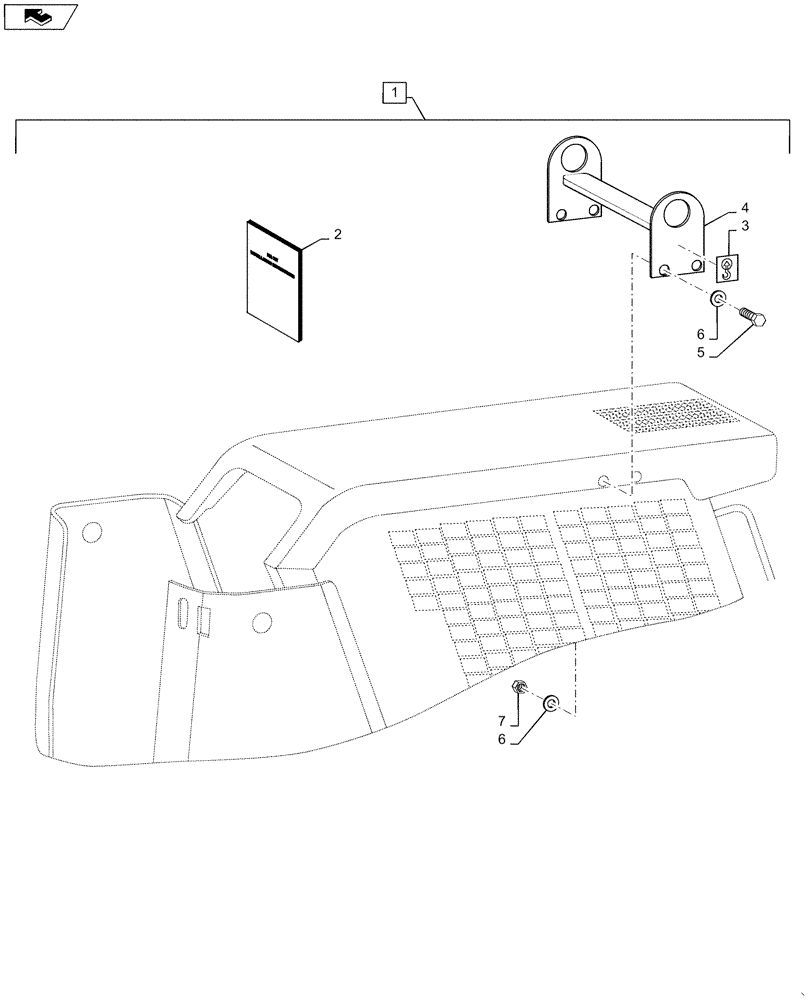

Запчасти Case IH 440 (88.088.04) - DIA KIT, LIFT HOOK (88) - ACCESSORIES

1

87421141

DIA KIT, ADD PROD

Installation Lift Hook, Incl 2 - 7

1шт.

2

6-73790

INSTRUCTION

Installation

1шт.

3

139729A1

DECAL

Lifting plate

4шт.

4

87446499

BRACKET

Lift Hook

1шт.

5

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

4шт.

6

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

8шт.

7

412672

NUT,Hex, M12 x 1.75, Cl 10

Prevailing Torque, All Material

4шт.
