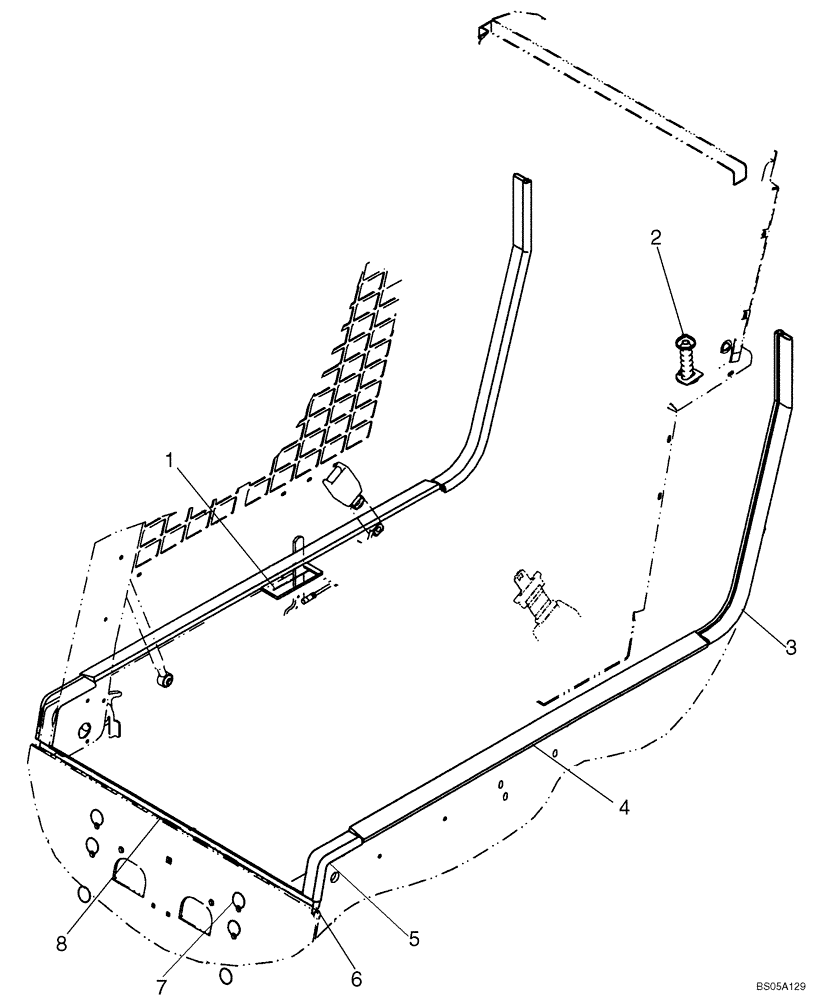

Запчасти Case IH 440 (09-21) - SOUNDPROOFING - SEAL (09) - CHASSIS

1

430284A1

INSULATING PANEL

Hand Throttle Seal

1шт.

2

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

3

394745A2

SEAL,800mm L

ROPS Wing

2шт.

4

378353A1

WEATHERSTRIP,44.5mm W x 1070mm L x 11.1mm Thk

Side Screen

2шт.

4

87462144

INSULATION,25.4mm W x 1070mm L x 12.7mm Thk

Side Screen; Replaces 378353A1

2шт.

5

414010A1

PROTECTION STRIP

Front Corner

2шт.

6

394748A1

INSULATION

Relief Cut

2шт.

7

299274A2

COVER,35mm OD

35mm Dia Lexan

6шт.

8

381176A2

SEALING STRIP,12.7mm W x 844mm L x 6.35mm Thk

Breast Plate

1шт.

9

87460573

PLATE

Boot Hold Down; Not Illustrated

1шт.

10

400988A1

BOOT

Seat Bar Linkage; Not Illustrated

1шт.
