Запчасти Case IH 440 (09-09) - BUCKET, CUTTING EDGE (BOLT-ON CUTTING EDGE) (09) - CHASSIS

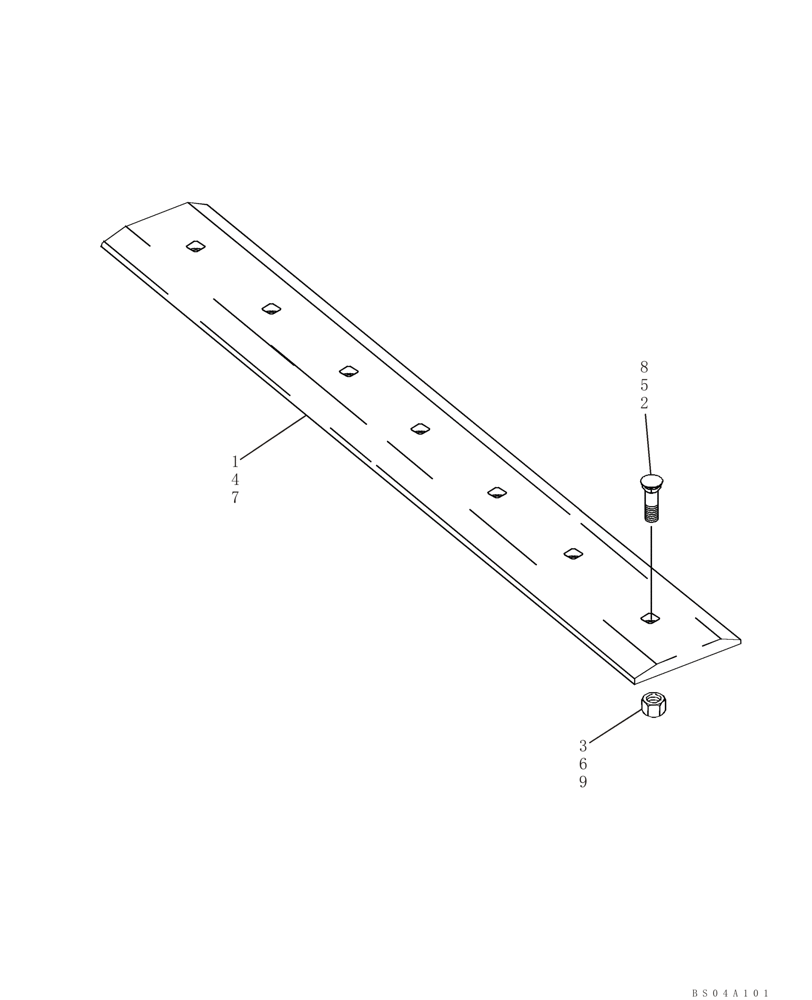

Схема запчастей Case IH 440 - (09-09) - BUCKET, CUTTING EDGE (BOLT-ON CUTTING EDGE) (09) - CHASSIS
5
9
1
2
3
bs04a101
8
4
6
7

Артикул

Название

Примечание

Количество

430498A1

EDGE, CUTTING

Kit; 66 Inch; Incl. Ref 1 - 3; Order Components

1шт.

1

87454483

CUTTING EDGE

7 Holes, 1676mm (66")

1шт.

2

86548338

PLOW BOLT,#3, 5/8" - 11 x 2", Gr 5

7шт.

3

425-1010

NUT,5/8"-11, G5

7шт.

430499A1

EDGE, CUTTING

Kit; 72 Inch; Incl. Ref 4 - 6; Order Components

1шт.

4

87454488

CUTTING EDGE,Bolt On, Double Edged, 7 Hole, 203.2mm W x 1825.6mm L

7 Holes, 1829 mm (72")

1шт.

5

86548338

PLOW BOLT,#3, 5/8" - 11 x 2", Gr 5

7шт.

6

425-1010

NUT,5/8"-11, G5

7шт.

434817A1

EDGE, CUTTING

Kit; 78 Inch; Incl. Ref 7 - 9; Order Components

1шт.

7

87454487

CUTTING EDGE,Bolt On, 9 Hole, 203.2mm W x 2016.1mm L, Power Tan

9 Holes, 1981 mm (78 inch)

1шт.

8

86548338

PLOW BOLT,#3, 5/8" - 11 x 2", Gr 5

9шт.

9

425-1010

NUT,5/8"-11, G5

9шт.

430500A1

EDGE, CUTTING

Kit; 84 Inch; Incl. Ref 7 - 9; Order Components

1шт.

7

86577173

CUTTING EDGE,Bolt On, 9 Hole, 203.2mm W x 2168.5mm L

9 Holes, 2134 mm (84 inch)

1шт.

8

86548338

PLOW BOLT,#3, 5/8" - 11 x 2", Gr 5

9шт.

9

425-1010

NUT,5/8"-11, G5

9шт.

Выбрано товаров: 16
