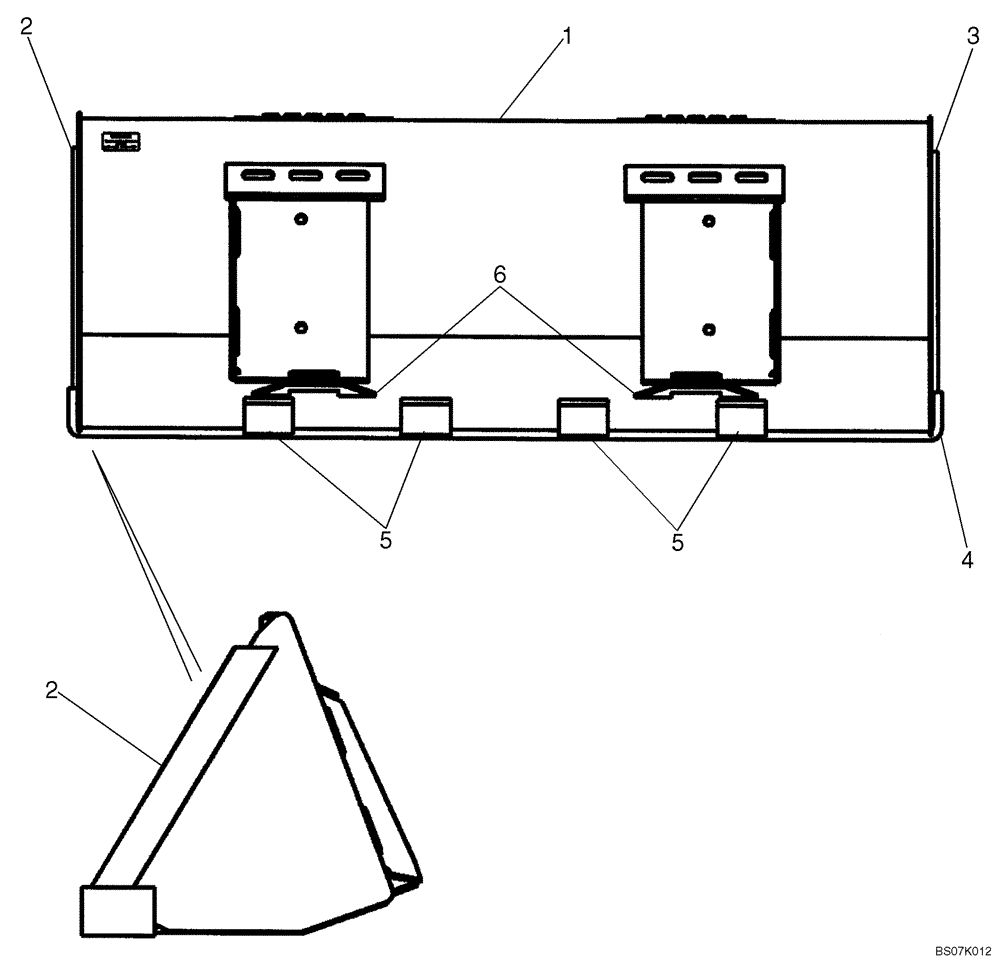

Запчасти Case IH 440 (09-05) - BUCKETS - LOADER (DIRT/FOUNDRY) (09) - CHASSIS

REF

INSTRUCTION

Dirt/Foundry

1шт.

1

86618350

BUCKET, 1676 mm (66 Inch); Order From Machinery Price List; Incl 2 - 6

BUCKET

1шт.

2

87014505

CUTTING BLADE

LH Cutter

1шт.

3

87014504

CUTTING BLADE

RH Cutter

1шт.

4

86577166

CUTTING EDGE

Weld On Blade 66 in

1шт.

5

87016983

BAR

Skid Bar

3шт.

6

9822175

PLATE

2шт.

1

86618351

BUCKET

1829 mm (72 Inch); Order From Machinery Price List; Incl 2 - 6

1шт.

2

87014505

CUTTING BLADE

LH Cutter

1шт.

3

87014504

CUTTING BLADE

RH Cutter

1шт.

4

86577168

CUTTING EDGE,Weld On, 7 Hole, 152.4mm W x 1825.8mm L

Weld On Blade 72 in

1шт.

5

87016983

BAR

Skid Bar

4шт.

6

9822175

PLATE

2шт.

1

86633060

BUCKET

BUCKET, 1981 mm (78 Inch); Order From Machinery Price List; Incl 2 - 6

1шт.

2

87014505

CUTTING BLADE

LH Cutter

1шт.

3

87014504

CUTTING BLADE

RH Cutter

1шт.

4

86577170

CUTTING EDGE,Weld On, 9 Hole, 152.4mm W x 1978.2mm L

Weld On Blade 78 in

1шт.

5

87016983

BAR

Skid Bar

4шт.

6

9822175

PLATE

2шт.
