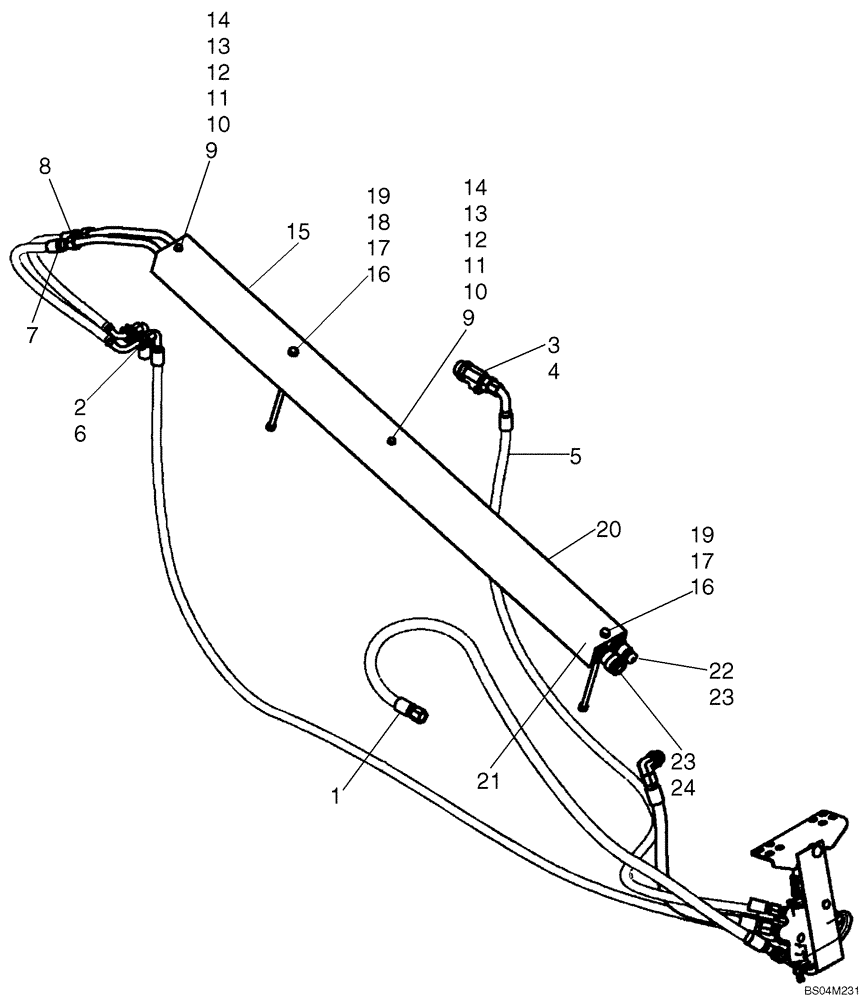

Запчасти Case IH 440 (08-15) - SECONDARY FRONT AUXILIARY (08) - HYDRAULICS

1

87462193

HOSE ASSY.

Secondary Auxiliary Outlet; 1650 mm (65 in); Replaces 87444370

1шт.

2

103-3398

SNAP RING,#X98, .822" Dia, E-Type

If Used

4шт.

2

87301328

SNAP RING

#X98, E-Style

4шт.

3

86624131

TEE,37 Degree, 1 1/16"-12, 1 5/16"-12 O-Ring Run, 1 1/16"-12

1шт.

4

87301344

REDUCER,37 Degree, 1 1/16"-12, Fem x 7/8"-14 Male

1шт.

5

87444377

HOSE ASSY.

Tank Return

1шт.

6

87453120

HOSE ASSY.

2шт.

7

87444374

HOSE ASSY.

633 mm (25 in); If Used

1шт.

7

87462215

HOSE ASSY.

If Used

1шт.

8

87444373

HOSE ASSY.,12.7mm ID x 583mm L

1шт.

9

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

3шт.

10

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

2шт.

11

257857A1

CLAMP

2шт.

12

259905A1

SPACER

1/4, 31.25 long

2шт.

13

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER Bar Clamp Top

2шт.

14

194739A1

LEDGER PLATE

Bar Clamp Mounting

2шт.

15

87444371

HYD TUBE,15.88 mm OD

2шт.

16

412004

BOLT,Hex, M10 x 1.5 x 260mm, Cl 8.8

2шт.

17

140017

WASHER,M10 x 20mm OD x 2mm Thk

2шт.

18

87447010

SPACER

Cover

1шт.

19

86512554

NUT,M10 x 1.5, Cl 10

2шт.

20

87447965

COVER

1шт.

21

87447009

BRACKET

1шт.

22

87417308

COUPLING, BREAK AWAY

1/2; Male; Incl. 87426762

1шт.

87426762

RING

1шт.

23

595460

BHD LOCK NUT,7/8" - 14

2шт.

24

393394A1

COUPLING, BREAK AWAY

1/2; Female

1шт.

25

84570

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl 26

1шт.

26

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.
