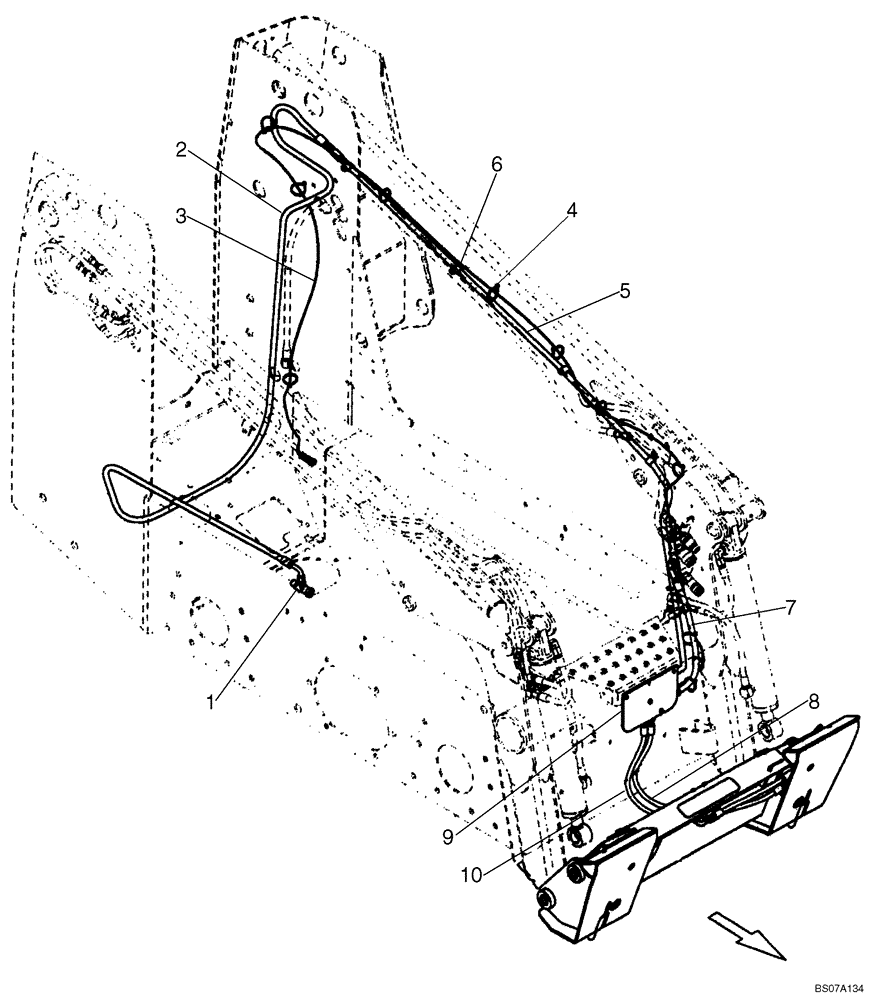

Запчасти Case IH 440 (08-06A) - HYDRAULICS - COUPLER SYSTEM, IF USED (08) - HYDRAULICS

REF

INSTRUCTION

See Figure 08-07; Coupler Frame; See Figure 09-04

1шт.

87388074

CONVERSION KIT

Kit To Convert From Connection Into Bucket Circuit (Shown On 08-06) To Connection Between Gear Pump And Loader Valve; Incl. Ref 1, 2, 4, 5, 6

1шт.

1

87446825

TEE

1шт.

2

87367444

HOSE,9.53mm ID x 3305mm L

1шт.

3

87446983

WIRE HARNESS

HYDRAULIC COUPLER

1шт.

4

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

13шт.

5

87367445

HOSE,9.53mm ID x 2482mm L

1шт.

6

86624005

CLAMP,19mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

7

87413436

HOSE ASSY.

Case Drain

1шт.

8

87440565

HOSE ASSY.,6.35mm ID x 720mm L

Step To Coupler

1шт.

9

87423807

PLATE

1шт.

10

87440564

HOSE ASSY.,6.35mm ID x 690mm L

Step To Coupler

1шт.
