Запчасти Case IH 440 (02-04) - AIR CLEANER - ENGINE (02) - ENGINE

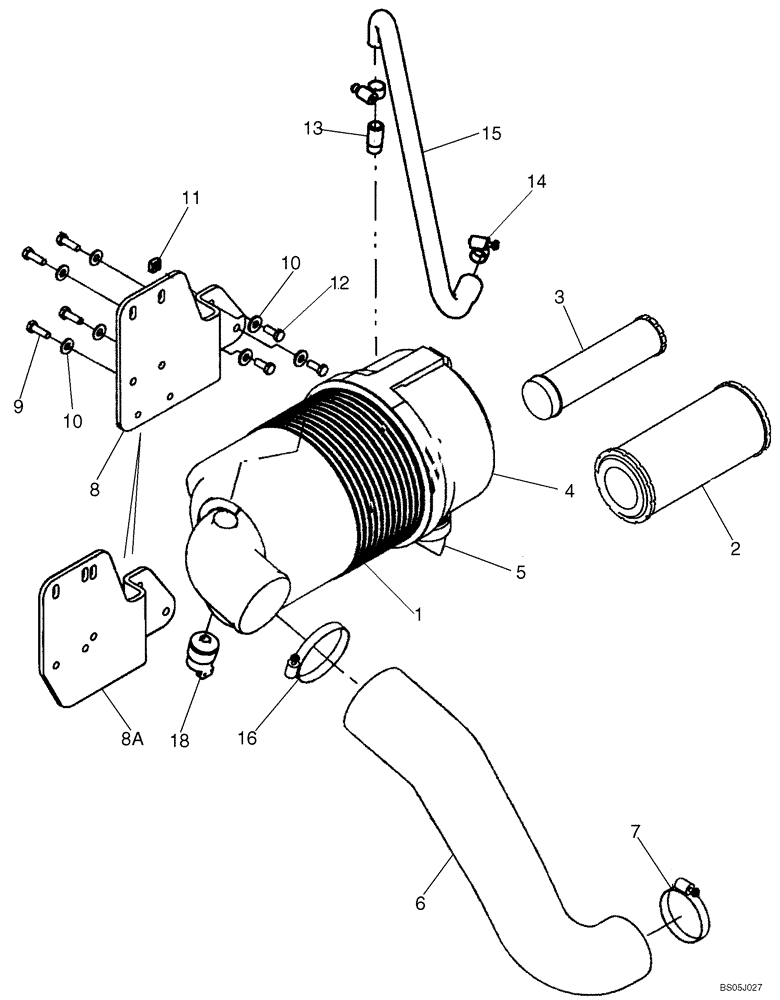

Схема запчастей Case IH 440 - (02-04) - AIR CLEANER - ENGINE (02) - ENGINE
18
4
2
16
7
12
6
3
14
10
8
1
15
8a
13
5
10
9
11

Артикул

Название

Примечание

Количество

1

87032107

CLEANER

Incl. 1 - 5

1шт.

2

222421A1

AIR FILTER

Primary

1шт.

3

222422A1

AIR FILTER

ELEMENT, FILTER Secondary

1шт.

4

395792A1

COVER ASSY

Incl. 4A

1шт.

4a

86990981

LOCKING TAB

Not Illustrated Separately

1шт.

5

A184597

VALVE POPPET,1.93" ID x 2.24" OD x 1.84" L

1шт.

6

87351957

INTAKE AIR HOSE,76.00 mm ID, 88.90 mm ID x 477.90, SAE J20R4

Air Cleaner Outlet; Replaces 87046952, 87462192

1шт.

7

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

1шт.

8

87045407

BRACKET

If Used

1шт.

8a

87055994

BRACKET

If Used

1шт.

9

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

10

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

11

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

3шт.

12

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

13

L17985

FITTING,3/8" - 18 NPT

1шт.

14

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

2шт.

15

87352014

RADIATOR HOSE,17.00 mm ID, 22.00 mm ID, 316.90 mm, SAE 30R2 TYPE 1

Replaces 87035869

1шт.

16

214-1460

HOSE CLAMP,#60, 3.31" - 4.25", Type F Worm

1шт.

17

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

3шт.

18

87013666

SWITCH,Air Filter Restriction

Air Restriction; Replaces 279492A1; If Used

1шт.

Выбрано товаров: 20
