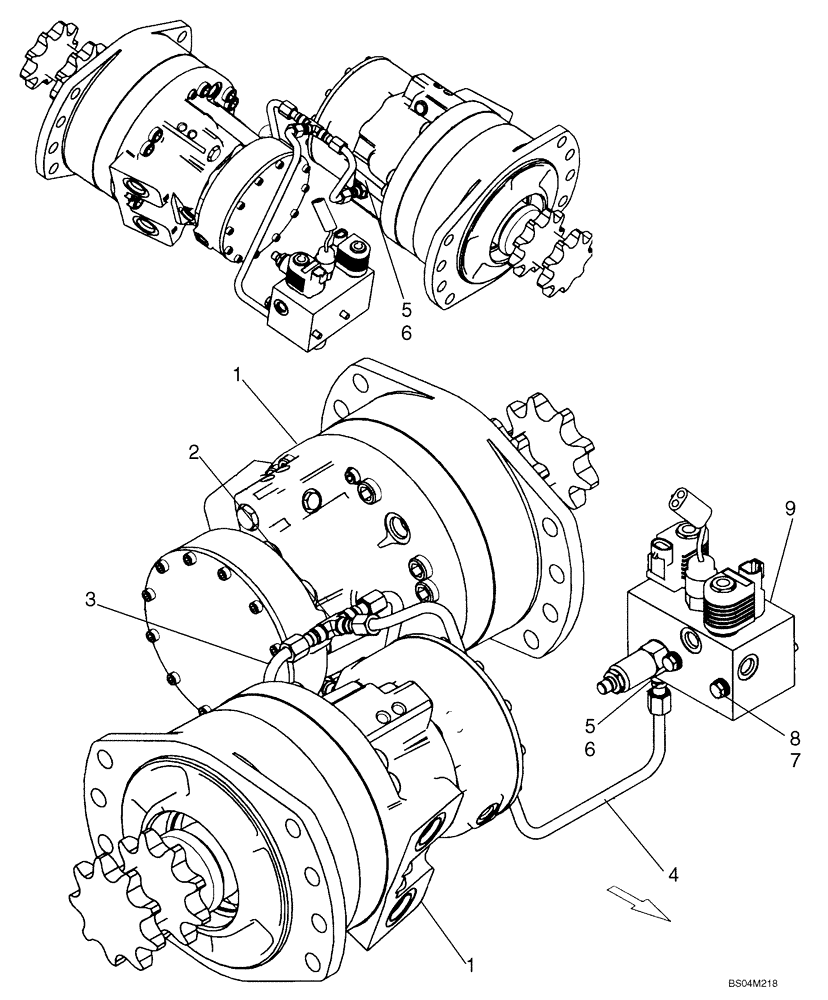

Запчасти Case IH 440 (06-09) - MOTOR ASSY - HYDROSTATIC DRIVE (06) - POWER TRAIN

1

87035342

HYDRAULIC MOTOR,470CC

Two Speed; See Figure 06-21 - 06-23

2шт.

1

87035342R

REMAN-HYD MOTOR,470CC

440 BSN N8M474469, 2 Speed

2шт.

1

87035342C

Return Number

CORE-MOTOR HYDRAULIC

2шт.

2

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

3

87430855

HYD TUBE,9.52 mm OD x 95.7, 33.2 mm L

2шт.

4

87455412

HYD TUBE,9.53 mm OD x 205, 90 mm L

1шт.

5

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 6

3шт.

6

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

7

86508571

BOLT,Hex, M8 x 90mm, Cl 8.8

2шт.

8

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

4шт.

9

87429625

HYDRAULIC VALVE

Two Speed; See Figure 06-09A

1шт.
