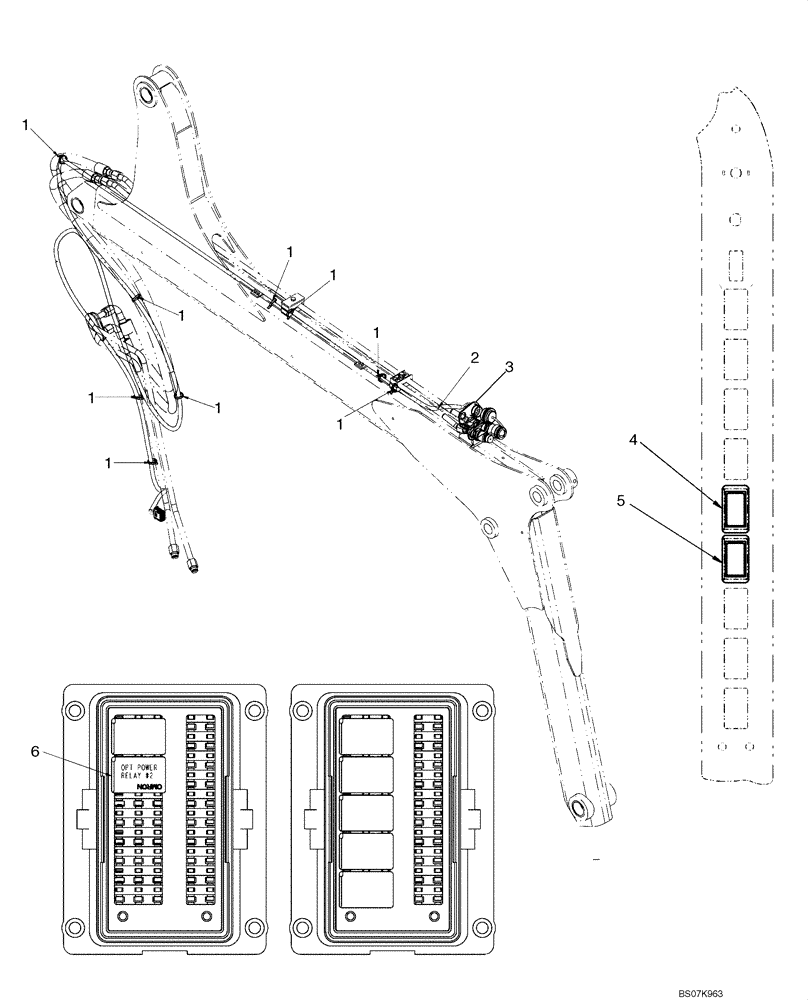

Запчасти Case IH 435 (04-27) - ELECTRIC - FRONT AUXILIARY (04) - ELECTRICAL SYSTEMS

87640048

SERVICE KIT

Auxiliary Front Electric; Incl 1 - 6

1шт.

1

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

9шт.

2

87441574

WIRE HARNESS

Front Auxiliary; Incl. 2A & 2B

1шт.

2a

490691C1

LOCK WASHER,#18 Shell

Used with bracket 87449992

1шт.

2b

490692C1

LOCK NUT,#18 Shell

Used with bracket 87449992

1шт.

3

87453780

BRACKET

1шт.

4

87634134

SWITCH

Rocker Switch, Auxiliary Electric I/O

1шт.

5

87634135

SWITCH

Rocker Switch, Auxiliary Electric F/R

1шт.

6

87655334

RELAY,12V, 35A, Micro

Relay

1шт.
