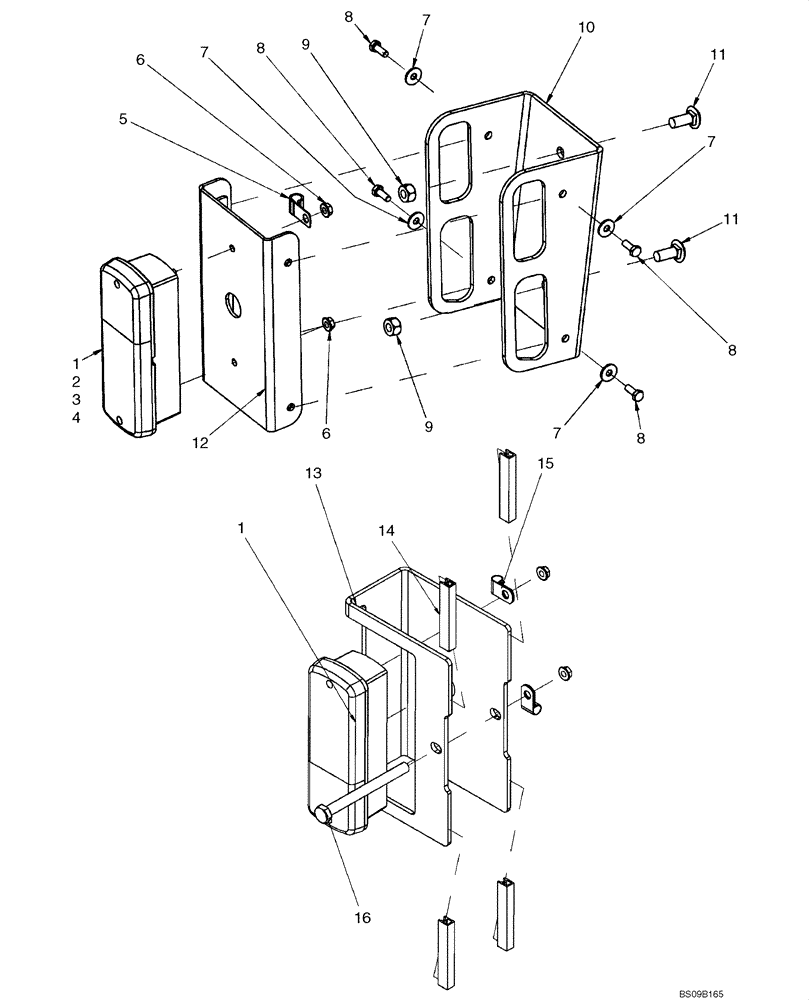

Запчасти Case IH 435 (04-23) - REAR LIGHT AND MOUNTING (04) - ELECTRICAL SYSTEMS

1

177239A2

LAMP, TAIL

LIGHT, TAIL Incl 2 - 4

2шт.

2

187140A1

LENS

2шт.

3

3131227R1

BULB,P25-1, 12V, 21W

2шт.

4

3131234R1

BULB,P25-2, 12V, 5W

2шт.

5

87016870

CLAMP,9.5mm, Coat, 8.7mm Bolt Hole, J Type

If Used

2шт.

6

86511444

FLANGE NUT,Hex, M6 x 1

4шт.

7

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

If Used

8шт.

8

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

If Used

8шт.

9

87030549

NUT,M10 x 1.5, Cl 10

If Used

4шт.

10

419431A1

BRACKET

Rear Turn Signal Bracket; If Used

2шт.

11

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

If Used

4шт.

12

427180A1

BRACKET

If Used

2шт.

13

367573A1

SUPPORT

Light Bracket

2шт.

14

D55218

SEAL, GLASS,76mm L

Trim Edge

8шт.

15

86637978

CLAMP,9.5mm, Coat, 8.7mm Bolt Hole, P Type

4шт.

16

86508573

BOLT,Hex, M10 x 110mm, Cl 8.8

2шт.
