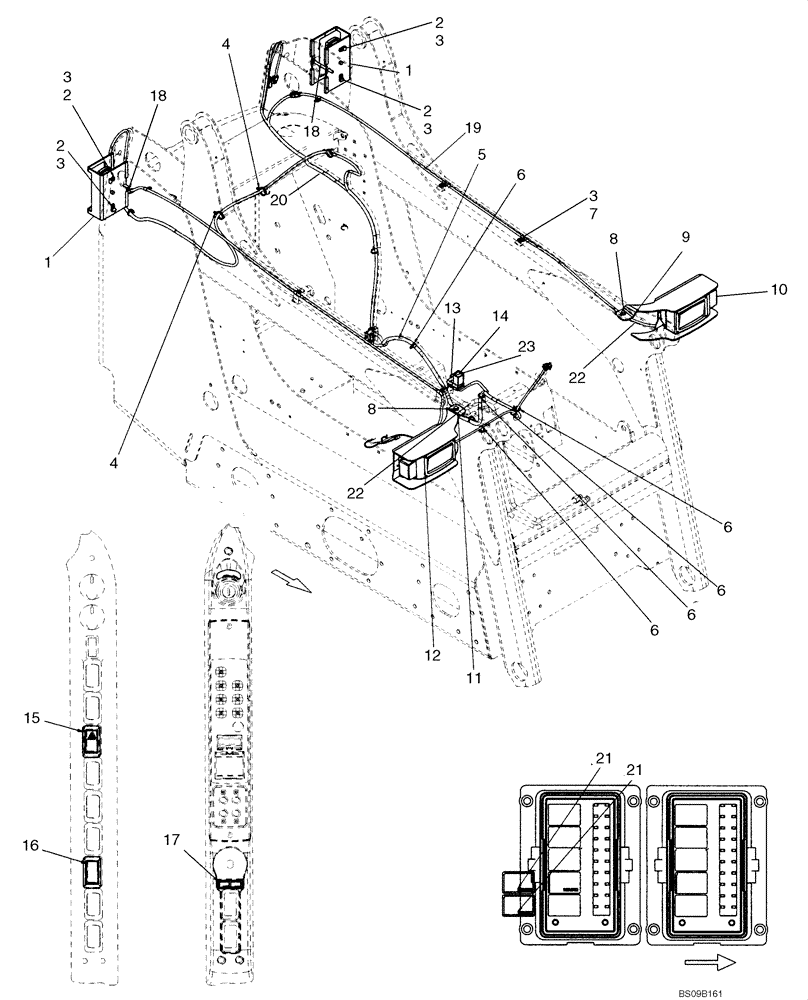

Запчасти Case IH 435 (04-18) - ELECTRICAL - ROAD LIGHTS (EUROPE) (04) - ELECTRICAL SYSTEMS

87676262

SERVICE KIT

Road Lights (EU); Incl 1 -22

1шт.

1

REF

INSTRUCTION

Rear Lamp; See Fig 04-23

2шт.

2

86511444

FLANGE NUT,Hex, M6 x 1

4шт.

3

86637978

CLAMP,9.5mm, Coat, 8.7mm Bolt Hole, P Type

10шт.

4

87668737

CABLE TIE,203.2mm L, Nylon, Black

Strap, Fir Tree Assy

3шт.

5

87668730

HARNESS

Harness, Europe Adapter (HL); If Used

1шт.

5

87746196

HARNESS

Harness, Europe Adapter (HL)

1шт.

6

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

11-12шт.

7

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

8

87030529

SELF-TAP SCREW,HWH, 3/8" - 16 x 7/8"

2шт.

9

87721975

BRACKET

Light Bracket, LH

1шт.

10

85821385

LH HEADLAMP,12V

See Fig 04-20

1шт.

11

87721976

BRACKET

Light Bracket, RH

1шт.

12

85821384

RH HEADLAMP,T4W, 12V, 4W

See Fig 04-19

1шт.

13

9821783

FLASHER UNIT

1шт.

14

388457A1

RELAY

Relay, Time Delay (5 Second); If Used

1шт.

15

87634133

SWITCH

Rocker Switch, Hazard Lights

1шт.

16

87642912

SWITCH

Rocker Switch, Loader Lock

1шт.

17

86604657

INDICATOR, TURN SIGN

Turn Indicator

1шт.

18

86508573

BOLT,Hex, M10 x 110mm, Cl 8.8

2шт.

19

87673076

HARNESS

Harness, On Road Boom Jumper

2шт.

20

87673078

HARNESS

Harness, On Road Boom

1шт.

21

87655334

RELAY,12V, 35A, Micro

35A N.O.

1-2шт.

22

D55218

SEAL, GLASS,76mm L

Edge Trim

2шт.

23

86500939

SELF-TAP SCREW,HWH, #10 - 16 x 3/8"

1шт.
