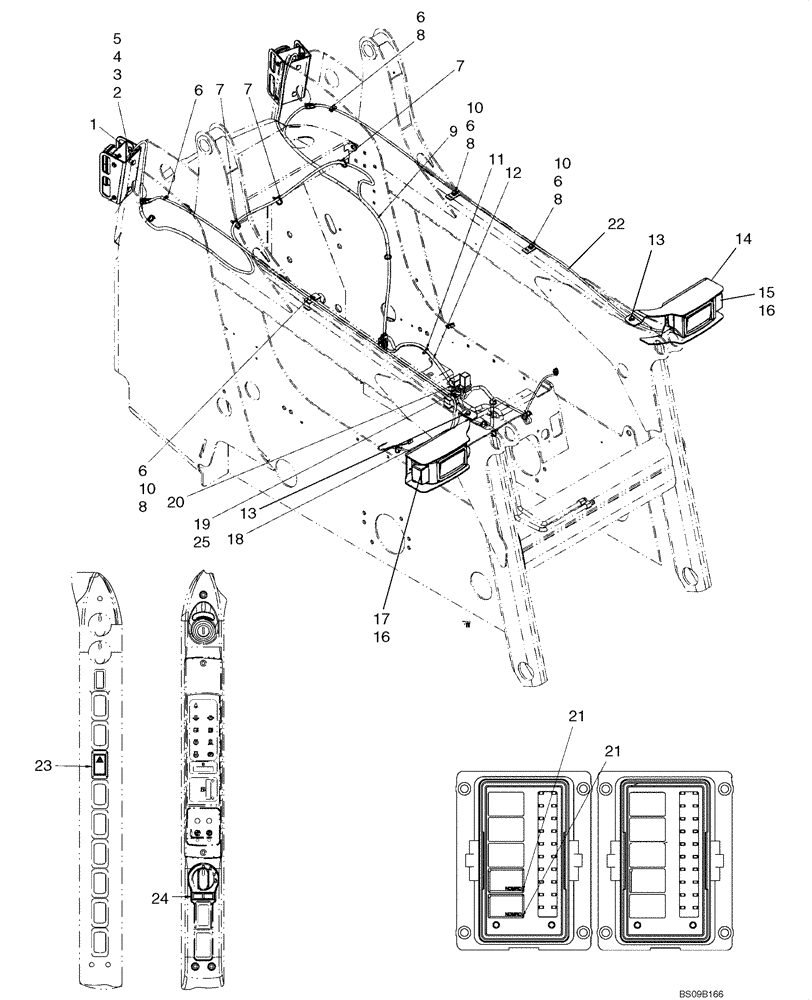

Запчасти Case IH 435 (04-17) - ELECTRICAL - ROAD LIGHTS (04) - ELECTRICAL SYSTEMS

87676263

SERVICE KIT

Kit, Road Lights (NA); Incl 1 - 24

1шт.

1

REF

INSTRUCTION

Rear Light Mounting; See Fig 04-23

2шт.

2

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

If Used

8шт.

3

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

If Used

8шт.

4

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

If Used

4шт.

5

87030549

NUT,M10 x 1.5, Cl 10

If Used

4шт.

6

86637978

CLAMP,9.5mm, Coat, 8.7mm Bolt Hole, P Type

6шт.

7

87668737

CABLE TIE,203.2mm L, Nylon, Black

3шт.

8

300380

BOLT,Hex, M8 x 1.25 x 10mm, Cl 8.8, Full Thd

3шт.

9

87673078

HARNESS

On Road Boom

1шт.

10

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

11

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

11шт.

12

87668732

HARNESS

Road Lights (HL); If Used

1шт.

12

87749673

HARNESS

Road Lights (HL)

1шт.

13

87030529

SELF-TAP SCREW,HWH, 3/8" - 16 x 7/8"

2шт.

14

87721975

BRACKET

Light Bracket, LH

1шт.

15

85821385

LH HEADLAMP,12V

LH; See Fig 04-20

1шт.

16

43435

FLANGE NUT,Hex, M10 x 1.5

If Used

4шт.

17

85821384

RH HEADLAMP,T4W, 12V, 4W

RH; See Fig 04-19

1шт.

18

87721976

BRACKET

Light Bracket, RH

1шт.

19

9821783

FLASHER UNIT

1шт.

20

83982664

RELAY

Turn Signal

1шт.

21

87655334

RELAY,12V, 35A, Micro

Relay

1-2шт.

22

87673076

HARNESS

On Road Jumper

2шт.

23

87634133

SWITCH

Rocker Switch, Hazard Lights

1шт.

24

86604657

INDICATOR, TURN SIGN

1шт.

25

86500939

SELF-TAP SCREW,HWH, #10 - 16 x 3/8"

2шт.
