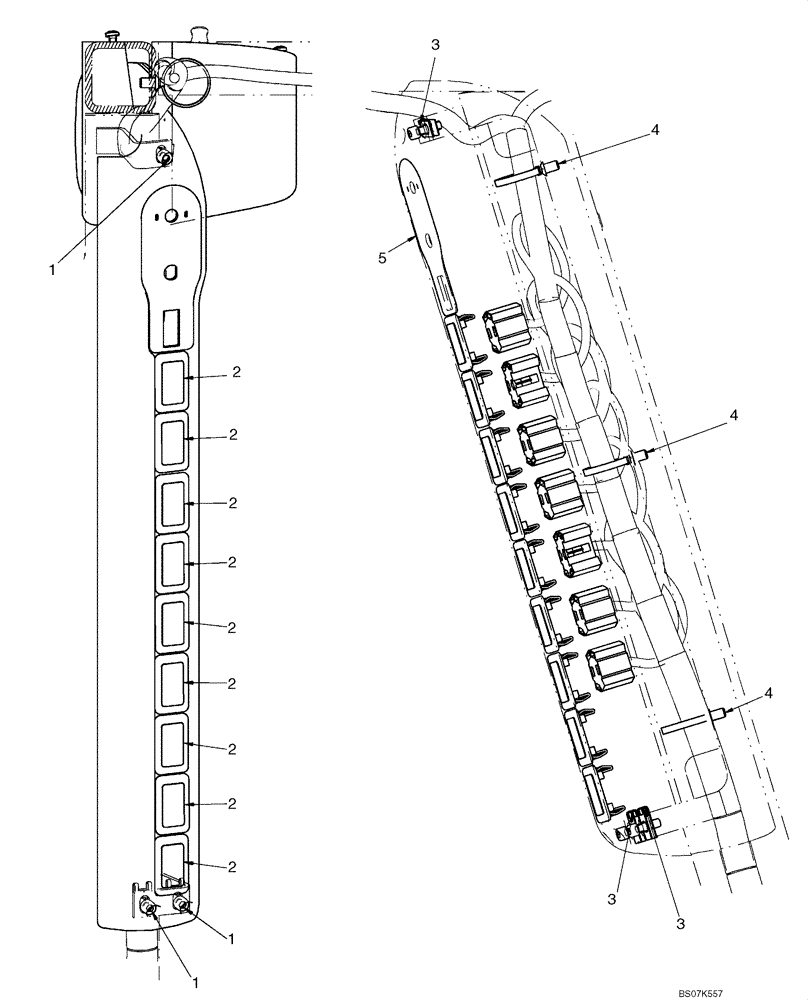

Запчасти Case IH 435 (04-07) - CAB ELECTRICAL - LEFT HAND CONSOLE (04) - ELECTRICAL SYSTEMS

1

280272

HEX SOC SCREW,1/4" - 20 x 3/4"

3шт.

2

126844A1

PLUG,1.427” x .62” , Plastic

9шт.

3

86521425

SPRING NUT,Tinn, U, 1/4"-20

3шт.

4

87668737

CABLE TIE,203.2mm L, Nylon, Black

See Fig 09-67A

3шт.

5

87687238

DECAL

Decal, Blank, No HVAC; If Used; See Fig 09-67A

1шт.

5

87746893

DECAL

Decal, HVAC Control Blank; See Fig 09-67A

1шт.

6

87627050

CONSOLE

LH; If Used

1шт.

6

84128477

CONSOLE

LH

1шт.
