Запчасти Case IH 435 (03-03) - INJECTION PUMP (87380450) (03) - FUEL SYSTEM

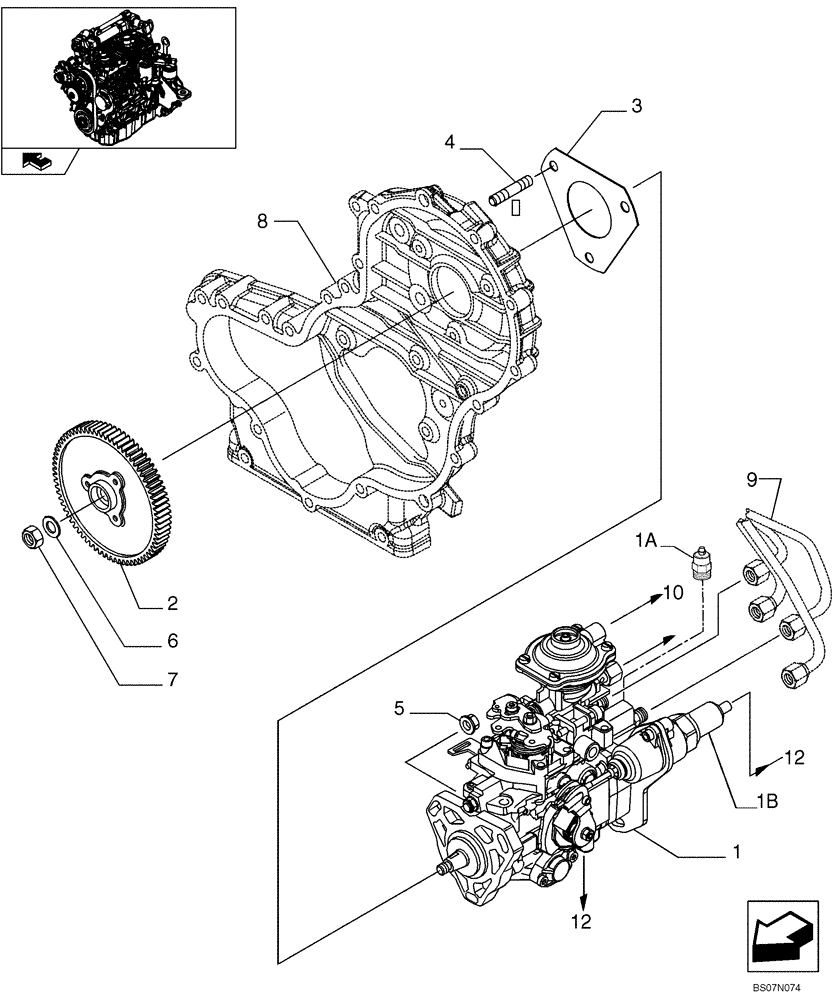

Схема запчастей Case IH 435 - (03-03) - INJECTION PUMP (87380450) (03) - FUEL SYSTEM
3
2
12
9
1
1a
10
6
5
8
7
1b
4
12

Артикул

Название

Примечание

Количество

1

504374952

FUEL INJECTION PUMP

Incl Fuel Shut-Off Valve 42533181, Solenoid Valve 93192974

1шт.

1

504374952R

REMAN-INJECTION PUMP

Reman for New PN 504374952

1шт.

1

504374952C

CORE-INJECTION PUMP

Return Number

1шт.

1a

42533181

SHUT-OFF VALVE

Fuel Shut-Off Valve; Injection Pump

1шт.

1b

93192974

SOLENOID VALVE

Solenoid Valve; Injection Pump (Wax Motor)

1шт.

1b

99478257

SOLENOID VALVE

Solenoid Valve; Injection Pump (Wax Motor) (Bosch #1467230445)

1шт.

2

504240405

GEAR

Gear

1шт.

3

2852885

GASKET,1.2mm Thk

1шт.

4

2852294

STUD,M8 x 1.25 x 30

3шт.

5

500368408

NUT,Hex, M8 x 1.25

Nut, M8X1,25

3шт.

6

17095404

WASHER

Washer

1шт.

7

16980331

NUT,M14 x 1.5

M14X1,5

1шт.

8

REF

INSTRUCTION

See Figure 02-13, Engine Block Front Cover

1шт.

9

REF

INSTRUCTION

See Figure 03-06, Injection Equipment Piping

1шт.

10

REF

INSTRUCTION

See Figure 03-05, Injection Equipment Piping

1шт.

11

REF

INSTRUCTION

See Figure 03-07, Injection Equipment - Fuel, Return

1шт.

12

REF

INSTRUCTION

See Figure 04-30, Engine Electric Installation

1шт.

Выбрано товаров: 17
