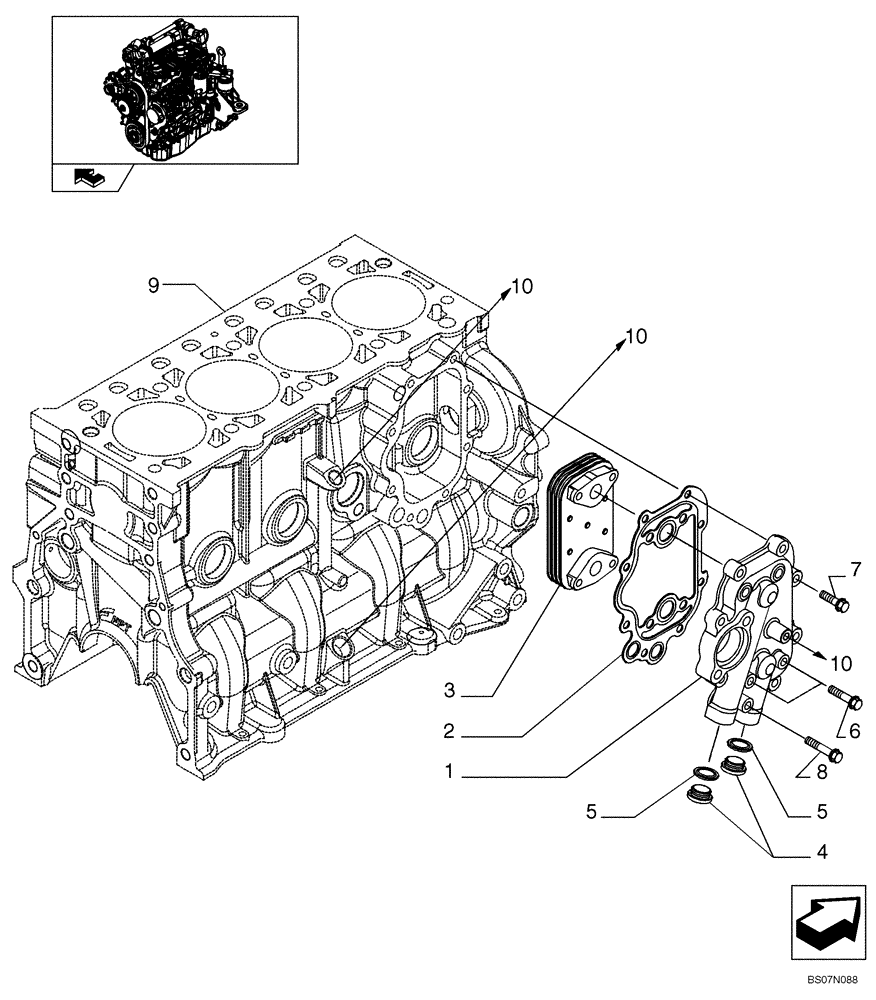

Запчасти Case IH 435 (02-33) - HEAT EXCHANGER (87380450) (02) - ENGINE

1

504155542

BODY

Case

1шт.

2

504155544

GASKET

Gasket

1шт.

3

504164307

OIL COOLER

Cooler, Oil

1шт.

4

10275011

PLUG,M22 x 1.5 x 13

M22X1,5 mm

2шт.

5

87332142

SEAL,23.5mm ID x 30mm OD x 1.5mm Thk

D. 22 mm

2шт.

6

16586725

BOLT,Hex, M8 x 1.25 x 40mm

M8 x 1.25 x 40

2шт.

7

16673835

BOLT,Hex, M8 x 30mm

M8 x 30

9шт.

8

16586925

BOLT,M8 x 50mm

M8 x 50

1шт.

9

REF

INSTRUCTION

See Figure 02-11, Cylinder Block And Related Parts

1шт.

10

REF

INSTRUCTION

See Figure 02-28, Turbo Charger

1шт.
