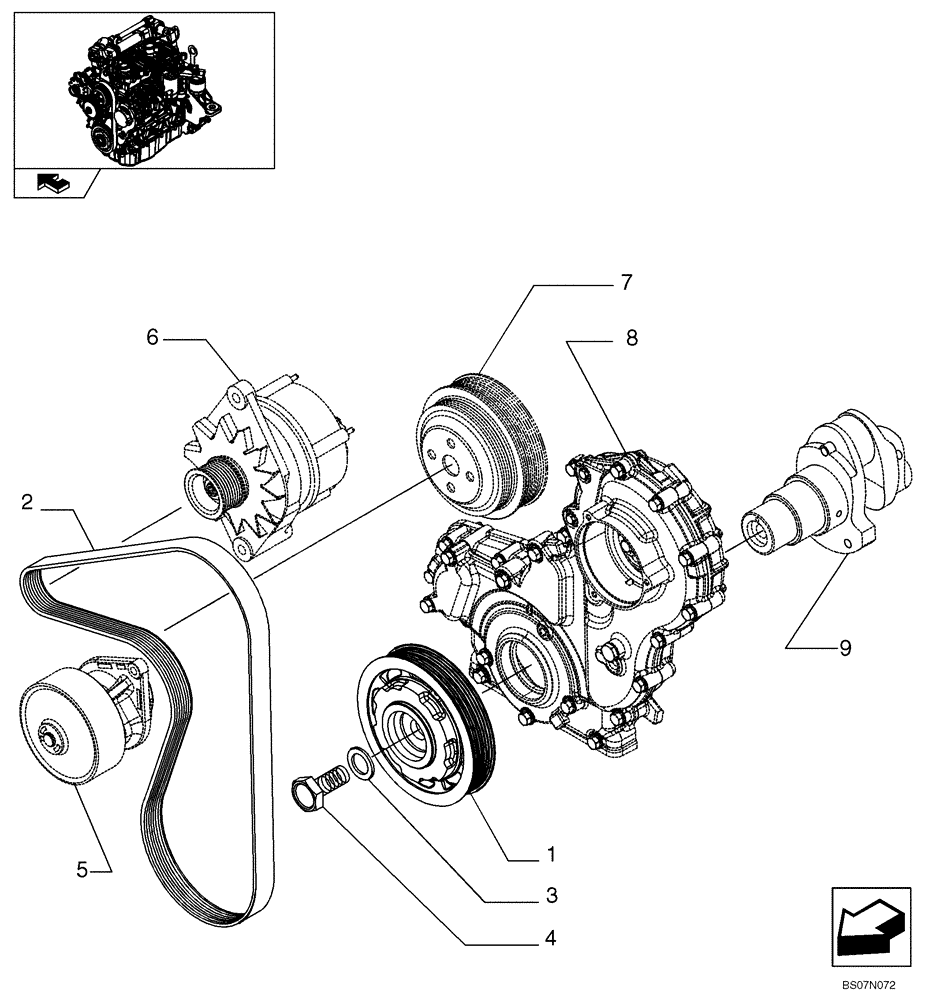

Запчасти Case IH 435 (02-26) - PULLEY - CRANKSHAFT (87380450) (02) - ENGINE

1

504273736

PULLEY

Pulley

1шт.

2

87608059

V-BELT,28.60 mm W x 1510.60 mm L

1шт.

3

17092874

THRUST WASHER

Washer, THrust

1шт.

4

98419203

SCREW,M20 x 1.5 x 58mm

M20X1,5X58 mm

1шт.

5

REF

INSTRUCTION

See Figure 02-34, Water Pump And Related Parts

1шт.

6

REF

INSTRUCTION

See Figure 04-02, Engine Alternater Mounting

1шт.

7

REF

INSTRUCTION

See Figure 02-37, Belt Pulley Drive Mounting

1шт.

8

REF

INSTRUCTION

See Figure 02-13, Engine Block Front Cover

1шт.

9

REF

INSTRUCTION

See Figure 02-22, Crank shaft

1шт.
