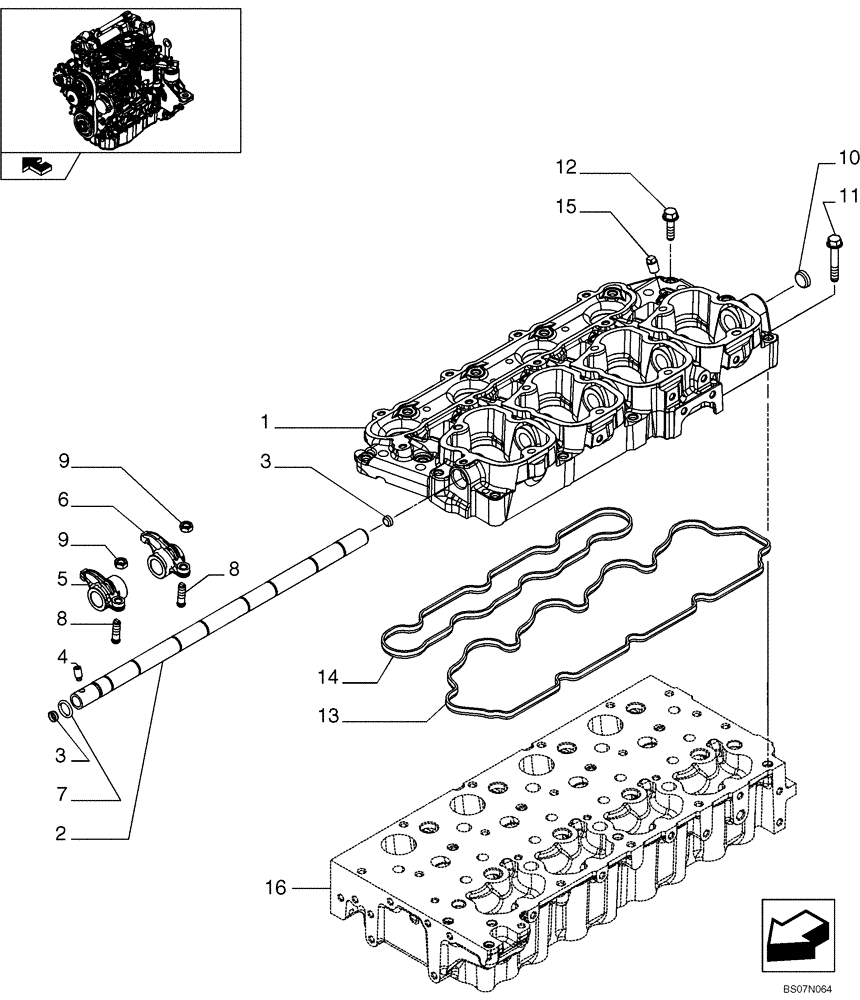

Запчасти Case IH 435 (02-18) - ROCKER SHAFT (87380450) (02) - ENGINE

1

504221907

SPACER

Spacer

1шт.

2

504250345

SHAFT

Shaft

1шт.

3

16987801

PLUG,Lock, M12

Plug, D. 12 mm

2шт.

4

99454296

SCREW

Screw

1шт.

5

504221915

ROCKER ARM

Rocker Arm

4шт.

6

504221914

ROCKER ARM

Rocker Arm

4шт.

7

14457181

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

D. 13,9 mm SP=2,6 mm

1шт.

8

4699783

ADJUSTMENT SCREW

8шт.

9

4338920

NUT

8шт.

10

2856468

PLUG,Lock, M22

Plug, D. 22 mm

1шт.

11

16586925

BOLT,M8 x 50mm

M8 x 50

10шт.

12

16673835

BOLT,Hex, M8 x 30mm

M8 x 30

11шт.

13

504163121

GASKET

Gasket

1шт.

14

504177226

GASKET

Gasket

1шт.

15

504273002

PLUG,M12 x 1.5

M12X1,5 mm

4шт.

16

REF

INSTRUCTION

See Figure 02-16, Cylinder Head And Related Parts

1шт.
