(02-17) - CYLINDER HEAD COVERS (87380450)

Запчасти Case IH 435 (02-17) - CYLINDER HEAD COVERS (87380450) (02) - ENGINE

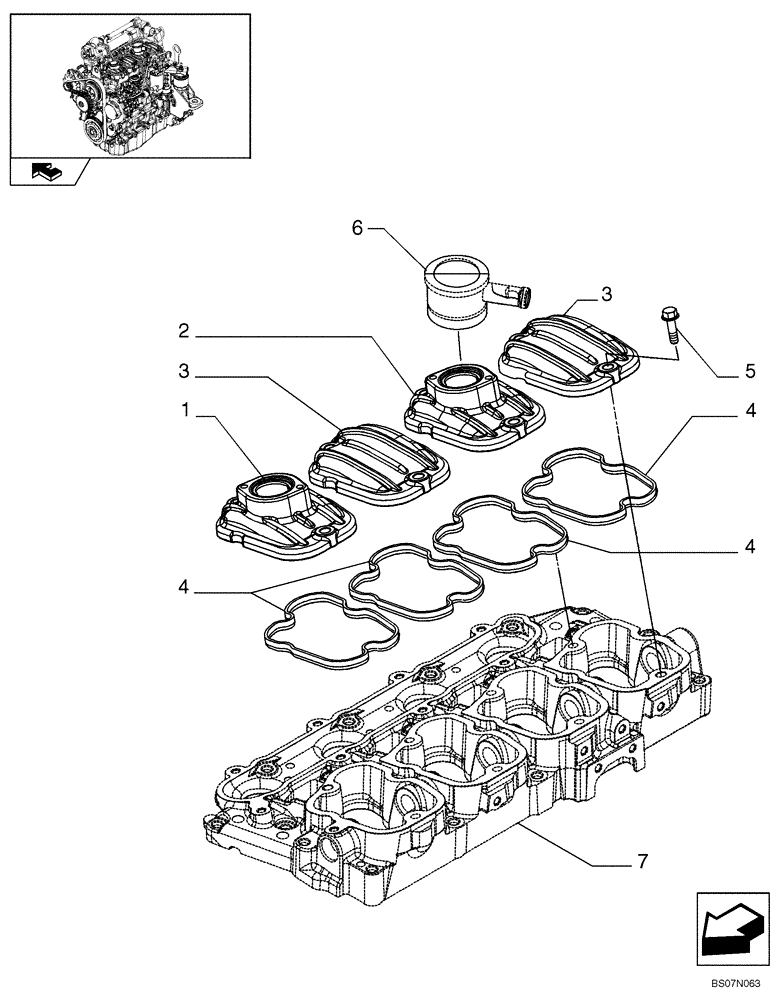

Схема запчастей Case IH 435 - (02-17) - CYLINDER HEAD COVERS (87380450) (02) - ENGINE
3
4
1
7
3
6
4
4
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

504245565

VALVE COVER

1шт.

2

504221916

VALVE COVER

1шт.

3

504305536

VALVE COVER

2шт.

4

504173590

GASKET

4шт.

5

2852247

BOLT,Hex, M8 x 1.25 x 30mm

M8X30 mm

8шт.

6

REF

INSTRUCTION

See Figure 02-15, Engine Breathers

1шт.

7

REF

INSTRUCTION

See Figure 02-18, Rocker Shaft

1шт.
