Запчасти Case IH 435 (02-16) - CYLINDER HEAD & RELATED PARTS (87380450) (02) - ENGINE

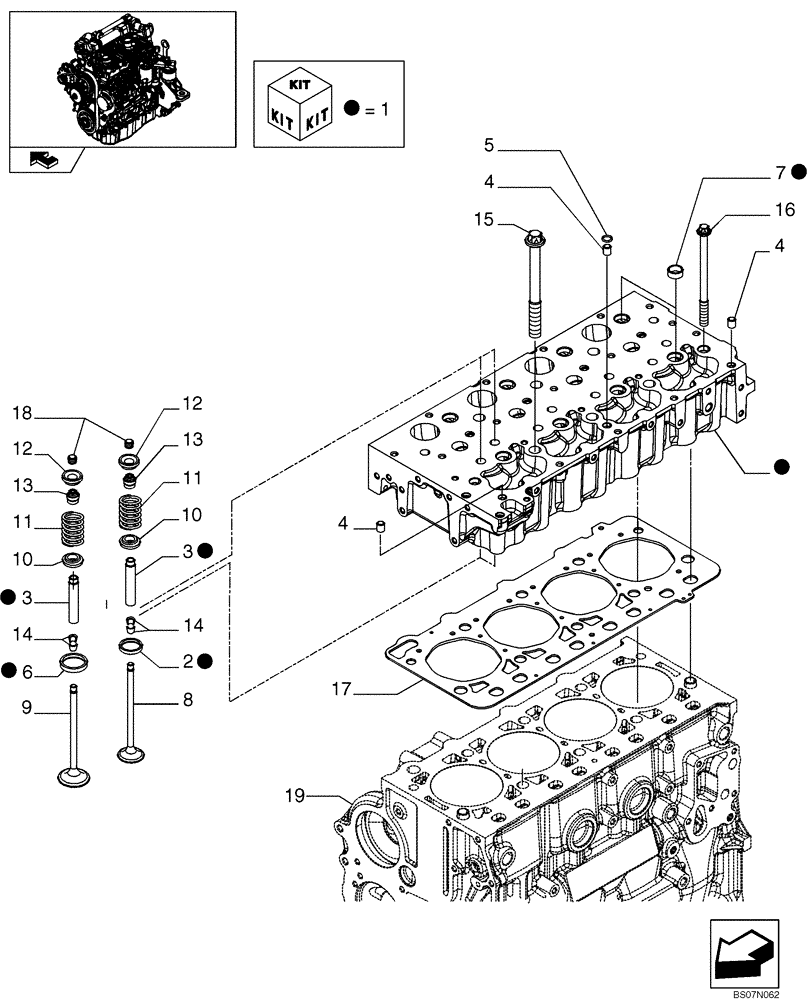

Схема запчастей Case IH 435 - (02-16) - CYLINDER HEAD & RELATED PARTS (87380450) (02) - ENGINE
18
4
13
7
11
6
17
14
5
4
2
19
10
16
12
14
15
4
13
10
9
3
12
11
8
1
3

Артикул

Название

Примечание

Количество

1

504254092

CYLINDER HEAD

Cylinder Head, Include Ref 2,3,6,7

1шт.

8099020

CYLINDER HEAD

Cylinder Head, Include Ref 8,9,10,11,12,13,14,18

1шт.

2

504162949

VALVE SEAT

Valve Seat

4шт.

3

4749397

VALVE GUIDE,Std

Valve Guide, +0,05 mm

8шт.

3

4749398

VALVE GUIDE,+0.10

Valve Guide,+0,1 mm

8шт.

3

4749399

VALVE GUIDE,+0.2

Valve Guide,+0,25 mm

8шт.

4

99435557

DOWEL,8.50mm Dia

D. 8,5 mm

3шт.

5

17281481

O-RING,10.7mm ID x 2.6mm Width

D. 10,7 mm SP=2,6 mm

1шт.

6

504254094

VALVE SEAT

Valve Seat

4шт.

7

16988301

PLUG,Lock, 20mm Dia

D. 20 mm

8шт.

8

504162958

STD INLET VALVE

STD ENGINE INLET VALVE Valve Engine Inlet, STD

4шт.

9

504162959

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE Valve Engine Exhaust, STD

4шт.

10

504178119

RETAINER CUP

Retainer Cup

8шт.

11

4812347

SPRING

8шт.

12

4780558

CUP

8шт.

13

40101573

SEAL

8шт.

14

4819891

ROCKER ARM COTTER,7.85mm Dia

Cotter Rocker Arm, D. 7,85 mm

16шт.

15

504081521

BOLT,M15 x 1.5 x 193mm

M15X1,5X193 mm

6шт.

16

504081533

BOLT,M12 x 1.5 x 165mm

M12X1,5X165 mm

4шт.

17

504190831

CYLINDER HEAD GASKET

Cylinder Head Gasket

1шт.

18

4838680

CAP

8шт.

19

REF

INSTRUCTION

See Figure 02-11 , Cylinder Block And Related Parts

1шт.

Выбрано товаров: 22
