Запчасти Case IH 435 (09-69) - DECALS (EUROPE) (09) - CHASSIS

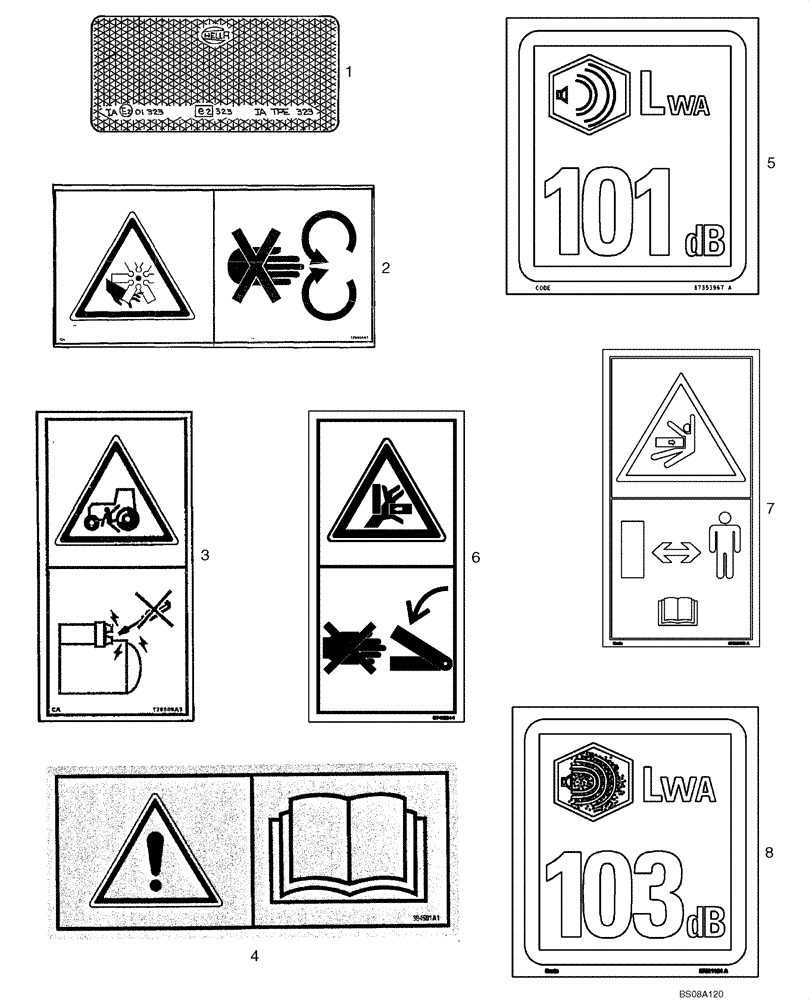

Схема запчастей Case IH 435 - (09-69) - DECALS (EUROPE) (09) - CHASSIS
5
2
7
6
3
8
4
1

Артикул

Название

Примечание

Количество

1

121573A1

REFLECTOR,94mm L X 44mm W

Red Reflector

1шт.

2

175504A1

DECAL

Decal, Warning Rotating Fan

1шт.

3

175509A1

WARNING DECAL

Decal, Start Instructions

1шт.

4

394581A1

DECAL

Decal, Misuse Hazard (Europe)

1шт.

5

87353967

DECAL,LWA 101DB, 100mm x 110 mm

Decal, LWA 101DB (445)

1шт.

6

87413244

DECAL

Decal, Pinch Point

1шт.

7

87626172

WARNING DECAL

Decal, Distance

1шт.

8

87611184

DECAL,LWA 103, 100mm x 110mm

Decal, LWA 103 DB (445CT)

1шт.

9

127550A1

ADHESIVE STRIP

Adhesive Tape, 35mm (1 3/8 in.) X 150mm (6 in.) Length; Not Illustrated

1шт.

Выбрано товаров: 9
