Запчасти Case IH 435 (09-65) - LIFT HOOKS - SINGLE POINT (09) - CHASSIS

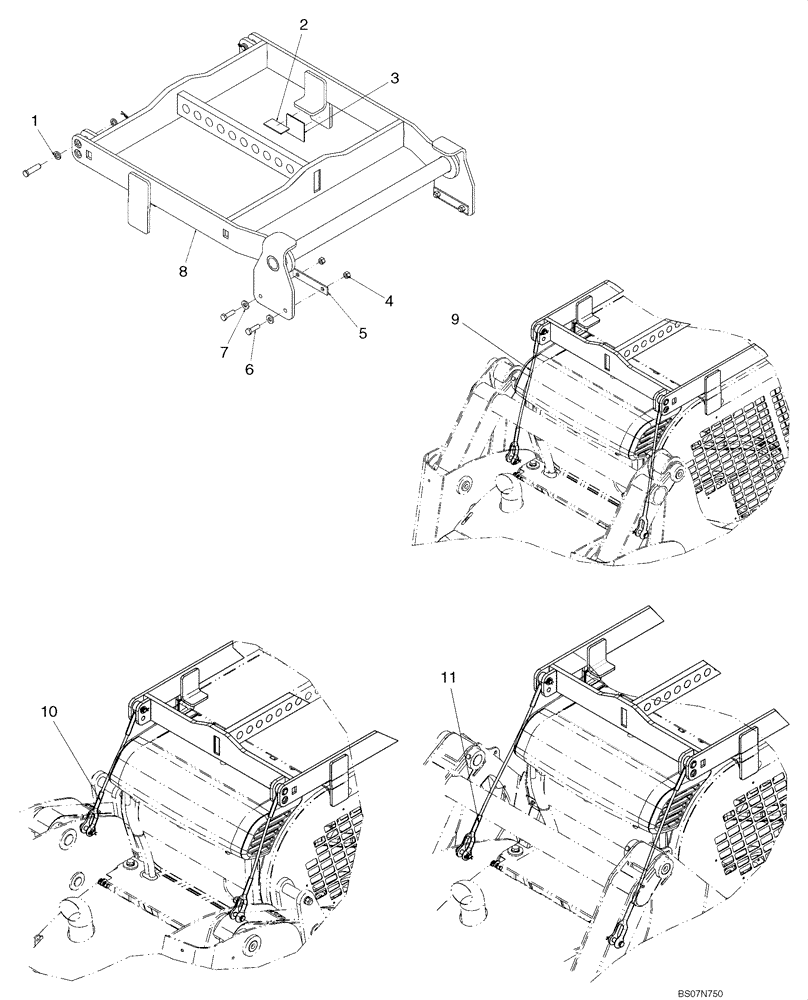

Схема запчастей Case IH 435 - (09-65) - LIFT HOOKS - SINGLE POINT (09) - CHASSIS
7
5
10
2
9
11
1
8
4
6
3

Артикул

Название

Примечание

Количество

87729551

SERVICE KIT

Kit, Lift Hook; Incl 1 - 11

1шт.

1

87563152

WASHER,17mm ID x 26.5mm OD x 4mm Thk

Washer, 17 X 26.5 X 4mm

4шт.

2

87729546

RUBBER PAD

2шт.

3

87729547

RUBBER PAD

2шт.

4

87533547

NUT,Prev Torque, M12, 1.75mm Pitch, Cl 10

Nut, M12 Cl 10

4шт.

5

87433116

BAR

2шт.

6

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

4шт.

7

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

4шт.

8

87729538

BRACKET

Lifter, Top

1шт.

9

87729548

CABLE

Cable; Incl (2) Pins And (2) Retaining Clips; Used On 435, 445

2шт.

10

87729549

CABLE

Cable; Incl (2) Pins And (2) Retaining Clips; Used On 450

2шт.

11

87729550

CABLE

Cable; Incl (2) Pins And (2) Retaining Clips; Used On 465

2шт.

Выбрано товаров: 12
