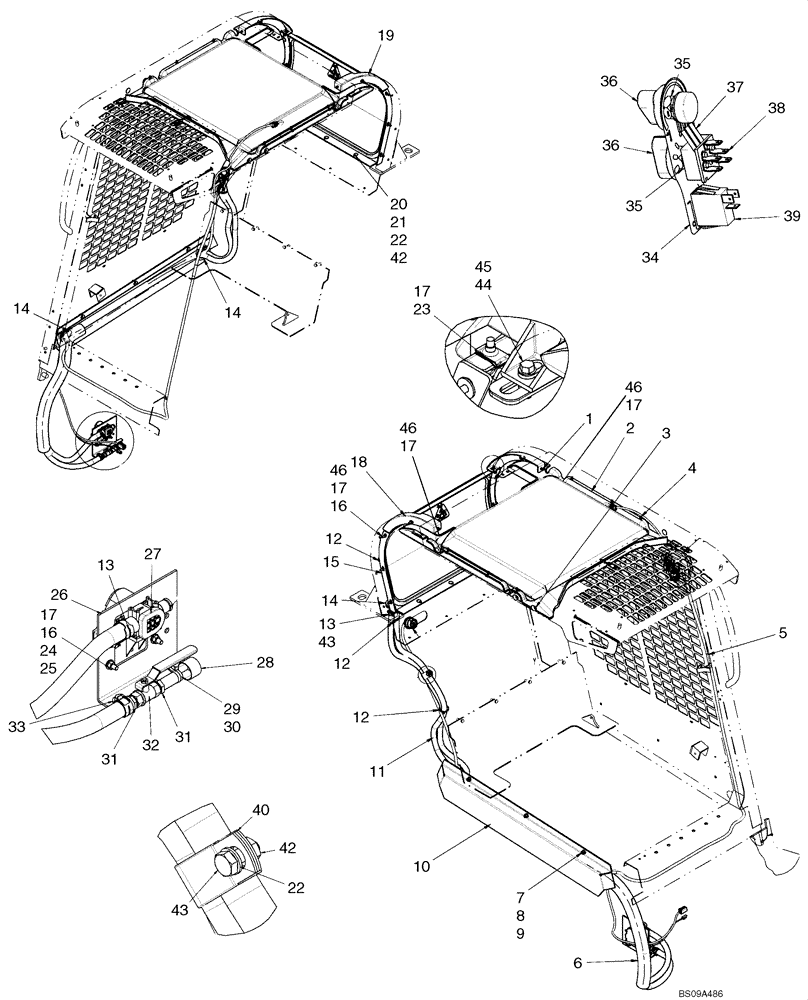

Артикул
Название
Примечание
Количество
1
87712706
FASTENER,16mm L, Nylon
Fastener, Push In; If Used
2шт.
2
87669938
LINER
Headliner; See Fig 09-46
1шт.
3
414635A1
COVER,25.4mm OD x 0.51mm Thk
If Used
3-4шт.
4
87713668
FASTENER
Fastener, Push In
6шт.
5
87718144
HARNESS
Harness, HVAC; If Used
1шт.
5
87482950
HARNESS
Harness, HVAC
1шт.
6
87439990
GUARD,46mm ID x 900mm L, Nylon Woven
Heater Hose Guard
1-2шт.
7
412250
NUT,M8 x 1.25, Cl 8
3шт.
8
86624185
WASHER,8.8mm ID x 17.5mm OD x 2mm Thk
3шт.
9
86512420
CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 20mm, Full Thd, Cl 8.8
3шт.
10
87689316
COVER
Hose Cover; If Used
1шт.
10
84164584
COVER
Hose Cover, Gray
1шт.
11
87438211
HEATER HOSE,15.88 mm ID x 2985.00 mm, SAE 20R3
Supply; If Used
2шт.
12
L11541
CABLE TIE,203.2mm L, Nylon
CABLE STRAP
3-4шт.
13
87443511
CLAMP,22mm - 26mm, CTB-24, Style C
2-4шт.
14
87439844
GUARD
Trim
3шт.
15
87705418
GLASS
Rear Window, HVAC; See Fig 09-42; If Used
1шт.
15
87742310
GLASS
Rear Window, HVAC; See Fig 09-42
1шт.
16
86588450
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
4-12шт.
17
9804256
BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8
10-12шт.
18
87705417
GLASS
Filler, Rear Window RH
1шт.
19
87705416
FILLER
Filler, Rear Window LH
1шт.
22
86624184
WASHER,9mm ID x 16mm OD x 1.6mm Thk
If Used
1-4шт.
22
86624183
WASHER,6.6mm ID x 25mm OD x 1.6mm Thk
1шт.
23
87016585
NUT,Spring, M6 x 1
2шт.
24
86977786
BOLT,Hex, M6 x 1 x 25mm, Cl 8.8
4шт.
25
86511444
FLANGE NUT,Hex, M6 x 1
4шт.
26
87439472
BRACKET
Bracket, Water Valve And Dryer
1шт.
27
87520839
VALVE
Water Valve 2-Way
1шт.
28
9827902
CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type
1шт.
29
229197A1
SQUARE NUT,M8 x 1.25, Cl 8
2шт.
30
120103
BOLT,M8 x 1.25 x 16mm, Cl 8.8
2шт.
31
642560
FITTING,5/8" Hose x 3/8" NPTF Beaded
2шт.
33
87015284
WASHER,8.8mm ID x 21.5mm OD x 2.5mm Thk
2шт.
34
87687236
DECAL
Decal, HVAC Control
1шт.
35
87310592
JAM NUT,7/16" - 28, Gr 5
2шт.
37
86729675
SWITCH,5000 Ohm
1шт.
38
86729669
SWITCH
Switch, Blower Fan
1шт.
39
87555250
PLUG
A/C Switch Plug; If Used
1шт.
40
H434289
MOUNTING CLIP,7/8”, Insulated, 1/2” Bolt
If Used
1шт.
43
43127
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8
If Used
1шт.
45
86619800
FLANGE NUT,M6 x 1, Cl 8
2шт.
46
86624182
WASHER,6.6mm ID x 18mm OD x 1.6mm Thk
10шт.
Выбрано товаров: 51
