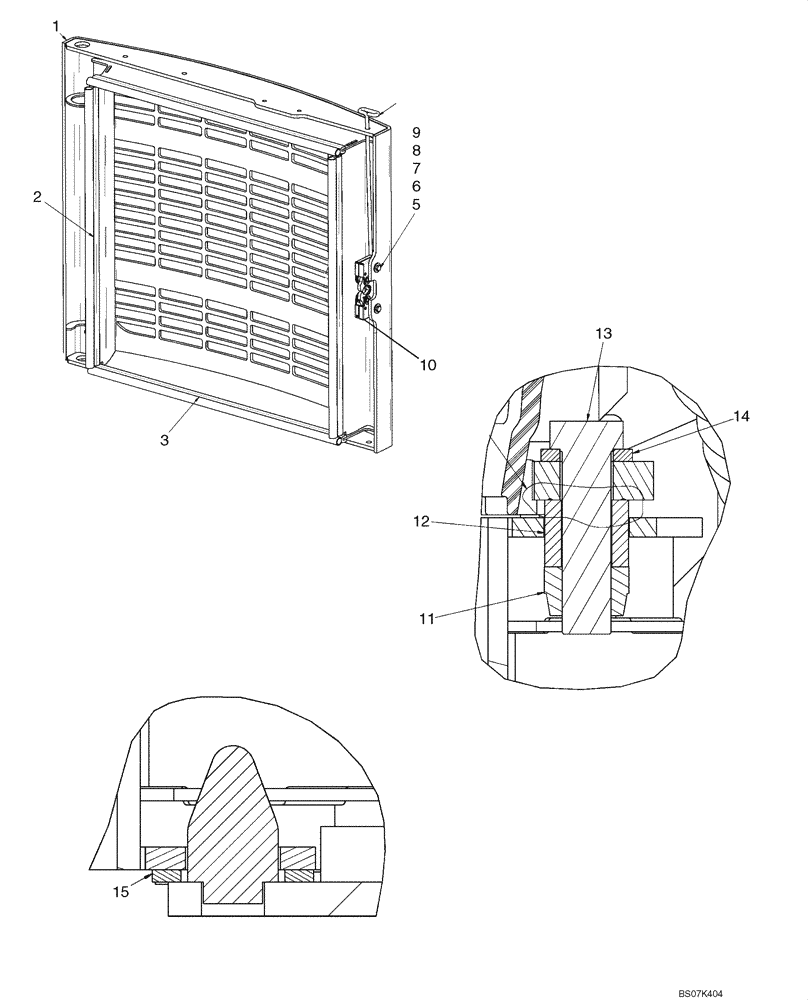

Запчасти Case IH 435 (09-49) - REAR DOOR (09) - CHASSIS

1

87716234

DOOR

Standard Rear Door

1шт.

1

87717029

DOOR

Heavy Duty Rear Door

1шт.

2

87648128

RUBBER SEAL,562mm L

Bulb Seal, 562mm (22 1/8 in.)

2шт.

3

87578980

RUBBER SEAL,590mm L

Bulb Seal, 590mm (23 7/32 in.)

2шт.

4

87606604

ROD

Latch Pull Rod

1шт.

5

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

6

87030561

NUT,M6 x 1, Cl 8

2шт.

7

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

8

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

2шт.

9

380751A1

NUT

1шт.

10

87585878

LATCH

Latch

1шт.

11

86512555

NUT,M16 x 2, Cl 10

1шт.

12

248461A1

BUSHING,16.5mm ID x 24mm OD x 22mm L

1шт.

13

9828248

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9, Full Thd

1шт.

14

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

15

248988A1

THRUST WASHER

1шт.
