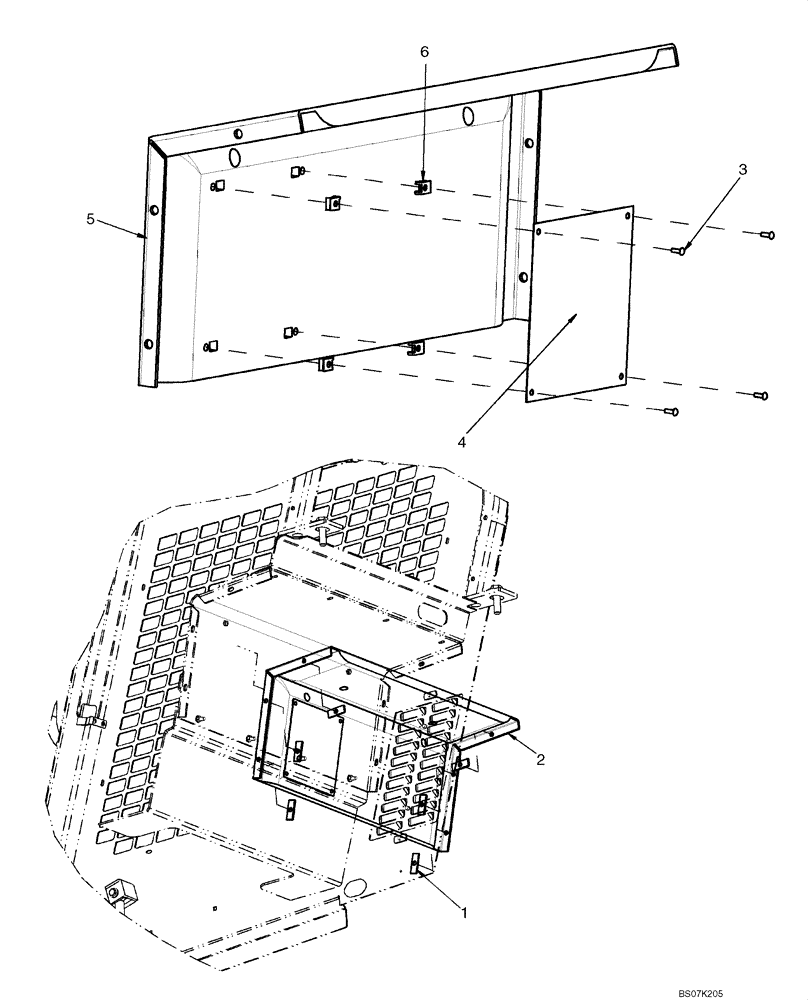

Запчасти Case IH 435 (09-48) - HEAT SHIELD (09) - CHASSIS

1

87460558

BAR

Mounting Bar

6шт.

2

87679670

FOAM INSULATION

Heat Shield; If Used

1шт.

2

84120004

INSULATION

Heat Shield Insulation Pad

1шт.

3

NSS

NOT SOLD SEPARAT

Screw, Pan Head #8 X 1/2 in.

4шт.

4

NSS

NOT SOLD SEPARAT

Heat Shield

1шт.

5

NSS

NOT SOLD SEPARAT

Heat Shield Insulation

1шт.

6

NSS

NOT SOLD SEPARAT

Spring Nut

4шт.
