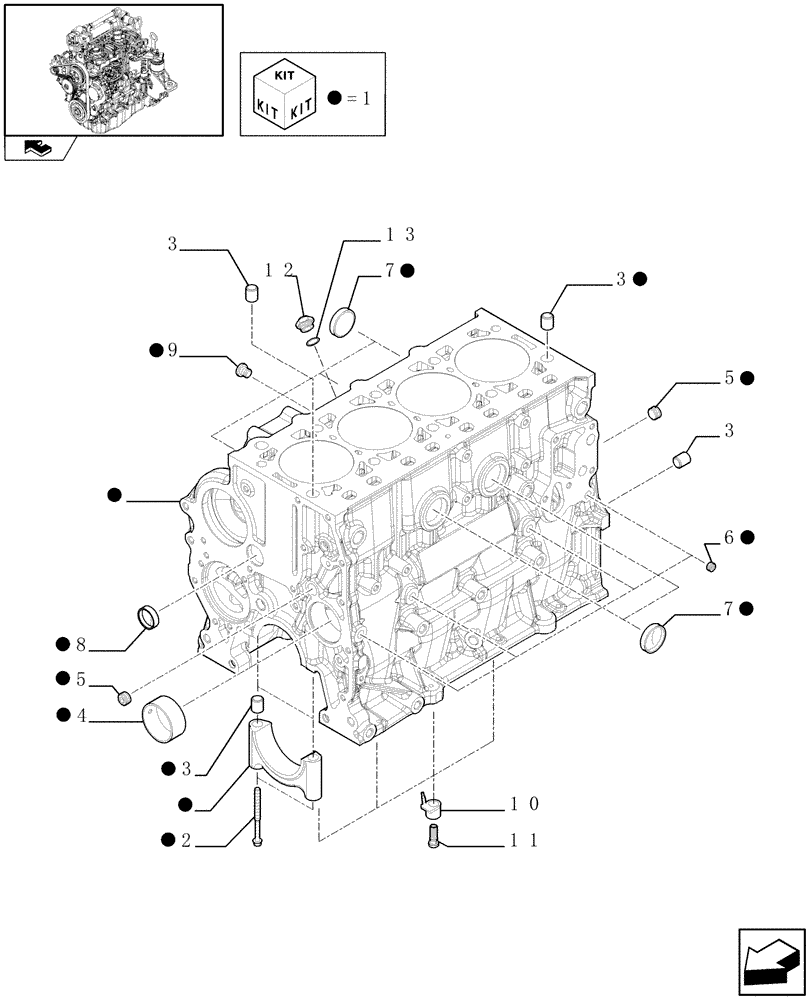

Запчасти Case IH 435 (02-11) - CYLINDER BLOCK & RELATED PARTS (87380450) (02) - ENGINE

1

504189766

CYLINDER BLOCK,4 Cylinders

Cylinder Block Assy

1шт.

2

4891353

SCREW,Flg Hd, M12 x 1.5 x 120

10шт.

3

7300019

DOWEL,0.75mm Thk

14шт.

4

4895040

BUSHING,54.39mm ID x 59.39mm OD x 25.4mm L

5шт.

5

504051238

PLUG,Threaded, 3/8" Dia

D. 3/8"

3шт.

6

504051236

PLUG,Threaded, 1/8"

D. 1/8"

4шт.

7

14329901

PLUG,M40, Tapered

6шт.

8

16990970

PLUG,Lock, 30mm Dia

D. 30 mm

1шт.

9

504016052

PLUG,M14 x 1.5

Plug, M14 x 1,5

1шт.

10

504156514

LUBE OIL NOZZLE

LUBE OIL JET NOZZLE Nozzle, Lube Oil Jet

1шт.

11

504173058

BANJO BOLT

Bolt, Banjo

1шт.

12

504356829

Fitting

PIPE FITTING,M14 x 1.5

1шт.

13

504077652

SEALING WASHER,13mm ID x 19mm OD

Seal

1шт.
