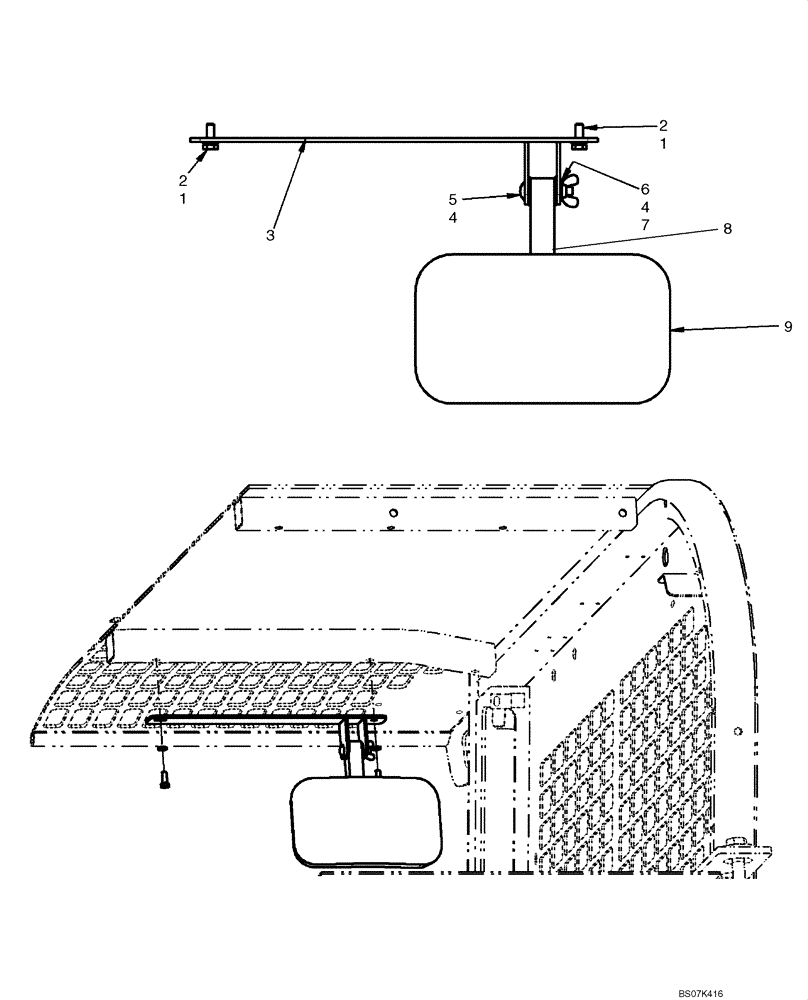

Запчасти Case IH 435 (09-37) - REAR VIEW MIRROR (09) - CHASSIS

1

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

2шт.

2

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

3

87684661

MOUNTING PLATE

Rear View Mirror Mount

1шт.

4

NSS

NOT SOLD SEPARAT

Nylon Washer

2шт.

5

9849641

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1 1/2", Gr 5

1шт.

6

87016587

WASHER,0.27" ID x 0.62" OD x 0.05" Thk

1шт.

7

86627130

WING NUT,1/4"-20

Wing Nut

1шт.

8

87684681

TUBE,110 mm L

Tube, Rear View Mirror Support

1шт.

9

87441735

MIRROR ASSY.

1шт.
